CTX100-1A-R

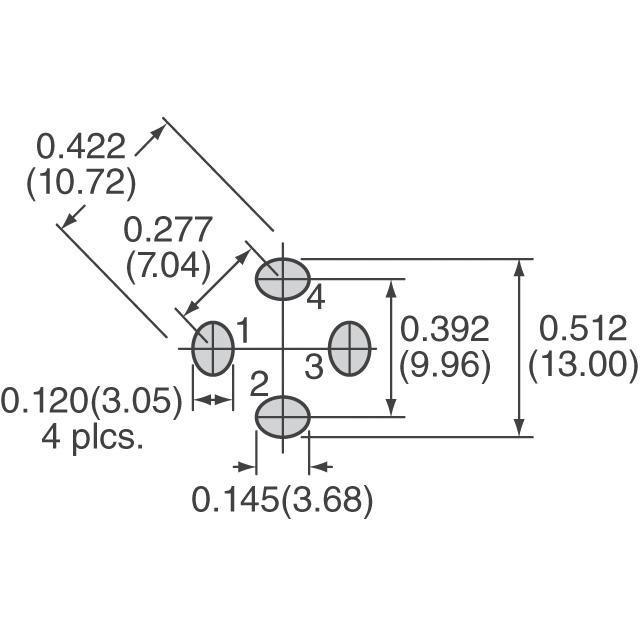

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CTX100-1A-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CTX100-1A-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CTX100-1A-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | INDUCT ARRAY 2 COIL 99.45UH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CTX100-1A-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 99.45UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4037 pcs | Data sheet | CTX Series ECONO-PAC, OCTA-PAC/PLUS |
| Category | Inductors, Coils, Chokes | Tolerance | ±25% |
| Size / Dimension | 0.450" L x 0.450" W (11.43mm x 11.43mm) | Shielding | Unshielded |
| Series | OCTA-PAC® PLUS | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | Nonstandard |
| Other Names | CTX100-1A CTX100-1A-ND |
Operating Temperature | -40°C ~ 85°C |
| Number of Coils | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance - Connected In Series | 397.8µH | Inductance - Connected In Parallel | 99.45µH |
| Height | 0.165" (4.19mm) | Detailed Description | Unshielded 2 Coil Inductor Array 397.8µH Inductance - Connected in Series 99.45µH Inductance - Connected in Parallel 686 mOhm Max DC Resistance (DCR) - Parallel 740mA Nonstandard |
| DC Resistance (DCR) - Series | 2.745 Ohm Max | DC Resistance (DCR) - Parallel | 686 mOhm Max |
| Current Saturation - Series | 410mA | Current Saturation - Parallel | 820mA |
| Current Rating - Series | 370mA | Current Rating - Parallel | 740mA |
