9250A-566-RC

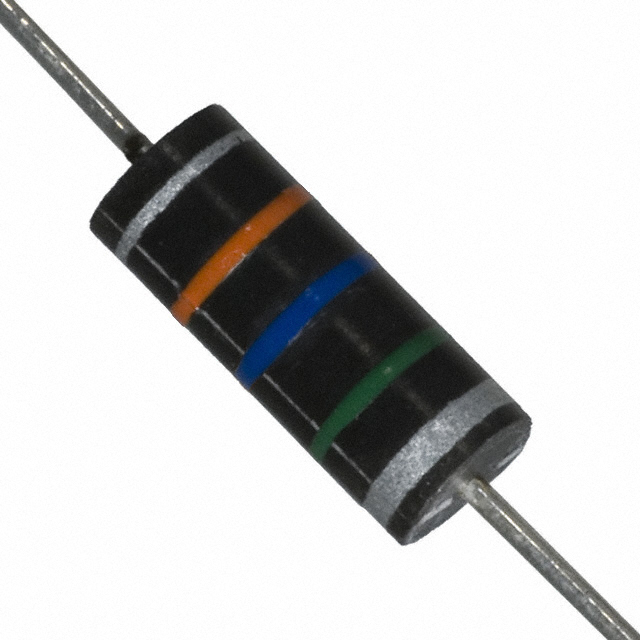

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 9250A-566-RC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 9250A-566-RC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 9250A-566-RC |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | FIXED IND 56MH 13MA 512 OHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 9250A-566-RC | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | FIXED IND 56MH 13MA 512 OHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4973 pcs | Data sheet | 9250A Series |
| Category | Inductors, Coils, Chokes | Type | Molded |
| Tolerance | ±10% | Supplier Device Package | Axial |
| Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | Shielding | Shielded |
| Series | 9250A | Ratings | - |
| Q @ Freq | 23 @ 79kHz | Packaging | Bulk |
| Package / Case | Axial | Other Names | 9250A-566-RC-ND M10125 |
| Operating Temperature | -55°C ~ 125°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 79kHz |
| Inductance | 56mH | Height - Seated (Max) | - |
| Frequency - Self Resonant | 140kHz | Detailed Description | 56mH Shielded Molded Inductor 13mA 512 Ohm Max Axial |
| DC Resistance (DCR) | 512 Ohm Max | Current Rating | 13mA |
| Current - Saturation | 5mA |
