9250A-564-RC

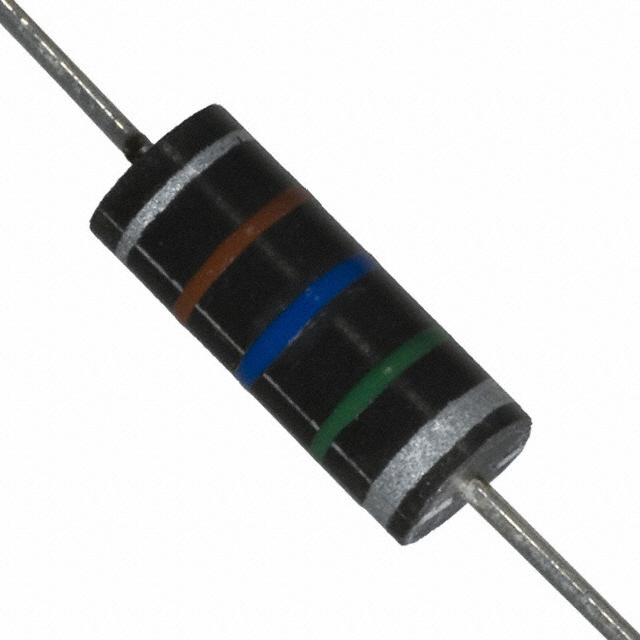

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 9250A-564-RC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 9250A-564-RC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 9250A-564-RC |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | FIXED IND 560UH 90MA 10.5 OHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.543 | $0.504 | $0.365 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $0.279 | $0.248 | $0.24 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 9250A-564-RC | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | FIXED IND 560UH 90MA 10.5 OHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 81114 pcs | Data sheet | 9250A Series |
| Category | Inductors, Coils, Chokes | Type | Molded |
| Tolerance | ±10% | Supplier Device Package | Axial |
| Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | Shielding | Shielded |
| Series | 9250A | Ratings | - |
| Q @ Freq | 60 @ 790kHz | Packaging | Bulk |
| Package / Case | Axial | Other Names | 9250A-564-RC-ND 9250A564RC M10124 |
| Operating Temperature | -55°C ~ 125°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 19 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 790kHz | Inductance | 560µH |
| Height - Seated (Max) | - | Frequency - Self Resonant | 4.7MHz |
| Detailed Description | 560µH Shielded Molded Inductor 90mA 10.5 Ohm Max Axial | DC Resistance (DCR) | 10.5 Ohm Max |
| Current Rating | 90mA | Current - Saturation | 55mA |
