70F501AF-RC

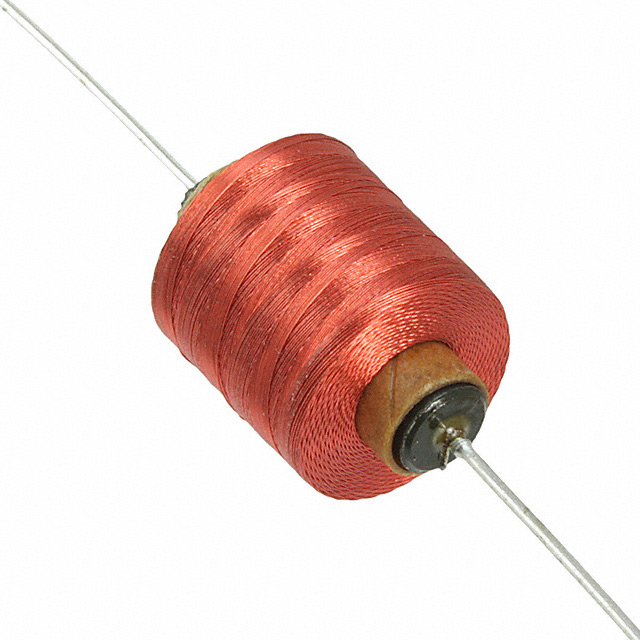

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 70F501AF-RC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 70F501AF-RC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 70F501AF-RC |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | FIXED IND 500MH 30MA 736 OHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 70F501AF-RC | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | FIXED IND 500MH 30MA 736 OHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4157 pcs | Data sheet | 70F Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±5% | Supplier Device Package | Axial |
| Size / Dimension | 0.630" Dia x 0.880" L (16.00mm x 22.35mm) | Shielding | Unshielded |
| Series | 70F | Ratings | - |
| Q @ Freq | 53 @ 25kHz | Packaging | Bulk |
| Package / Case | Axial | Other Names | 70F501AF-RC-ND 70F501AFRC M10176 |
| Operating Temperature | -55°C ~ 105°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 25kHz |
| Inductance | 500mH | Height - Seated (Max) | - |
| Frequency - Self Resonant | 52kHz | Detailed Description | 500mH Unshielded Wirewound Inductor 30mA 736 Ohm Max Axial |
| DC Resistance (DCR) | 736 Ohm Max | Current Rating | 30mA |
| Current - Saturation | - |
