3309P-1-101

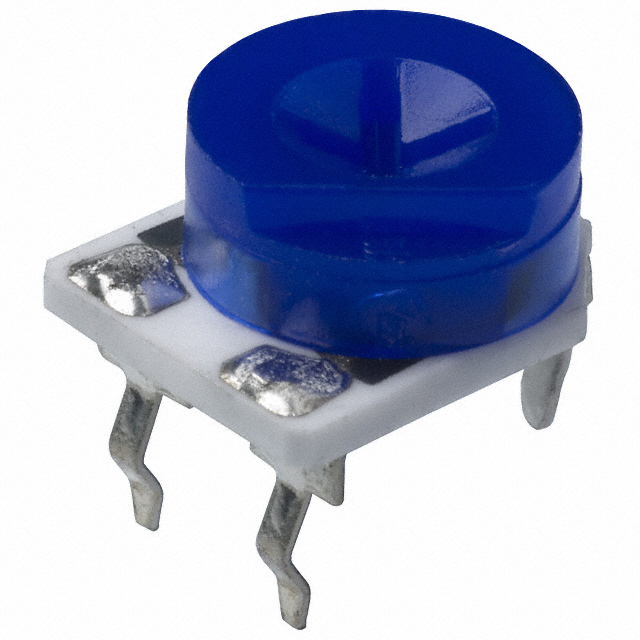

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3309P-1-101 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3309P-1-101 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3309P-1-101 |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | TRIMMER 100 OHM 0.5W PC PIN TOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.204 | $0.189 | $0.169 | $0.163 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.151 | $0.148 | $0.137 | $0.116 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3309P-1-101 | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | TRIMMER 100 OHM 0.5W PC PIN TOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 199493 pcs | Data sheet | 3309 Series Datasheet |
| Category | Potentiometers, Variable Resistors | Tolerance | ±25% |
| Termination Style | PC Pins | Temperature Coefficient | ±250ppm/°C |
| Size / Dimension | Rectangular - 0.453" x 0.354" Face x 0.250" H (11.50mm x 9.00mm x 6.35mm) | Series | Trimpot® 3309 - Open Frame |
| Resistive Material | Cermet | Resistance | 100 Ohms |
| Power (Watts) | 0.5W, 1/2W | Packaging | Bulk |
| Other Names | 3309P-101 3309P1101 |
Number of Turns | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | 100 Ohms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1 Turn Top Adjustment |
| Adjustment Type | Top Adjustment |
