3223W-1-502E

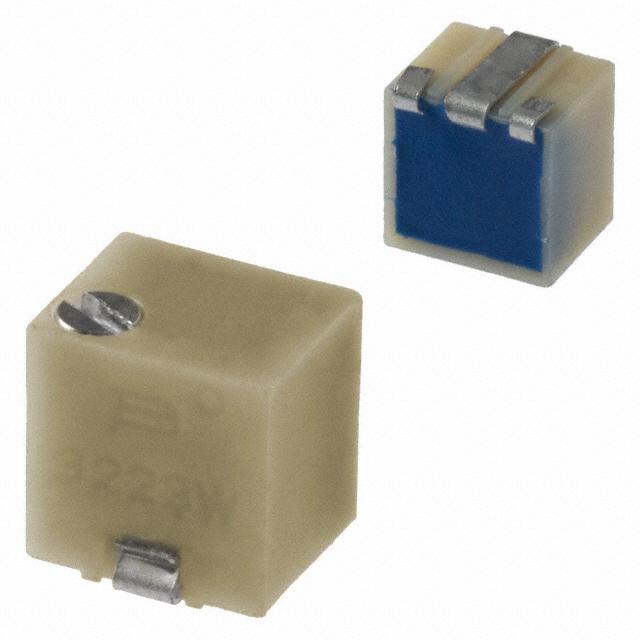

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3223W-1-502E with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3223W-1-502E with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3223W-1-502E |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | TRIMMER 5K OHM 0.125W J LEAD TOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | |
|---|---|---|---|---|---|
| $0.721 | $0.621 | $0.581 | $0.561 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3223W-1-502E | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | TRIMMER 5K OHM 0.125W J LEAD TOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65678 pcs | Data sheet | 3223 Series |
| Category | Potentiometers, Variable Resistors | Tolerance | ±20% |
| Termination Style | J Lead | Temperature Coefficient | ±100ppm/°C |
| Size / Dimension | Rectangular - 0.154" x 0.125" Face x 0.164" H (3.90mm x 3.18mm x 4.16mm) | Series | Trimpot® 3223 - Sealed |
| Resistive Material | Cermet | Resistance | 5 kOhms |
| Power (Watts) | 0.125W, 1/8W | Packaging | Tape & Reel (TR) |
| Other Names | 3223W-1-502ETR 3223W1502E |
Number of Turns | 11 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 5 kOhms 0.125W, 1/8W J Lead Surface Mount Trimmer Potentiometer Cermet 11 Turn Top Adjustment | Adjustment Type | Top Adjustment |
