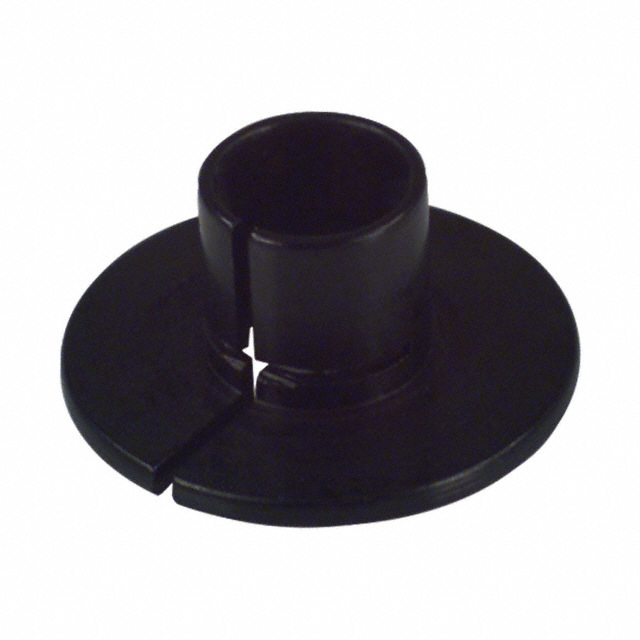

322400B00000G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 322400B00000G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 322400B00000G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 322400B00000G |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | HEAT SINK TO-18 1W BLK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.576 | $0.546 | $0.531 | $0.517 | $0.488 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.46 | $0.431 | $0.402 | $0.388 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 322400B00000G | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEAT SINK TO-18 1W BLK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 95394 pcs | Data sheet | Standard Heatsinks Catalog322x0xB00000G Datasheet |
| Category | Fans, Thermal Management | Width | - |
| Type | Top Mount | Thermal Resistance @ Natural | 100.00°C/W |
| Thermal Resistance @ Forced Air Flow | 30.00°C/W @ 500 LFM | Shape | Cylindrical |
| Series | - | Power Dissipation @ Temperature Rise | 0.6W @ 60°C |
| Package Cooled | TO-18 | Other Names | 000530 2224B 292-CB 322400B00000 3224B HS100 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 11 Weeks |
| Length | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.235" (5.97mm) | Diameter | 0.180" (4.57mm) ID, 0.500" (12.70mm) OD |
| Detailed Description | Heat Sink TO-18 Aluminum 0.6W @ 60°C Top Mount | Attachment Method | Press Fit |
