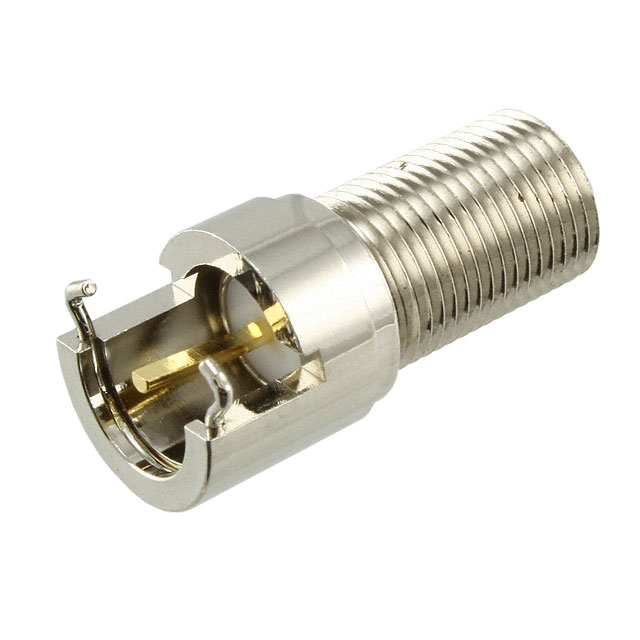

861V509ER
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 861V509ER with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 861V509ER with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 861V509ER |
|---|---|
| Manufacturer | Bomar (Winchester Electronics) |
| Description | CONN F JACK STR EDGE MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 861V509ER | Manufacturer | Bomar (Winchester Electronics) |
|---|---|---|---|
| Description | CONN F JACK STR EDGE MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5816 pcs | Data sheet | V-Bite PC Edge Mount |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Solder | Series | V-Bite® |
| Packaging | Tray | Other Names | 991-1043 |
| Operating Temperature | -40°C ~ 65°C | Number of Ports | 1 |
| Mounting Type | Board Edge, End Launch | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | - |
| Impedance | Non-Constant | Housing Color | Silver |
| Frequency - Max | 1GHz | Features | - |
| Fastening Type | Threaded | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | F Type Connector Jack, Female Socket Non-Constant Board Edge, End Launch Solder | Contact Termination | Solder |
| Connector Type | Jack, Female Socket | Connector Style | F Type |
| Center Contact Plating | Gold | Center Contact Material | Brass |
| Cable Group | RG-59 | Body Material | Brass |
| Body Finish | Nickel |
