861A509

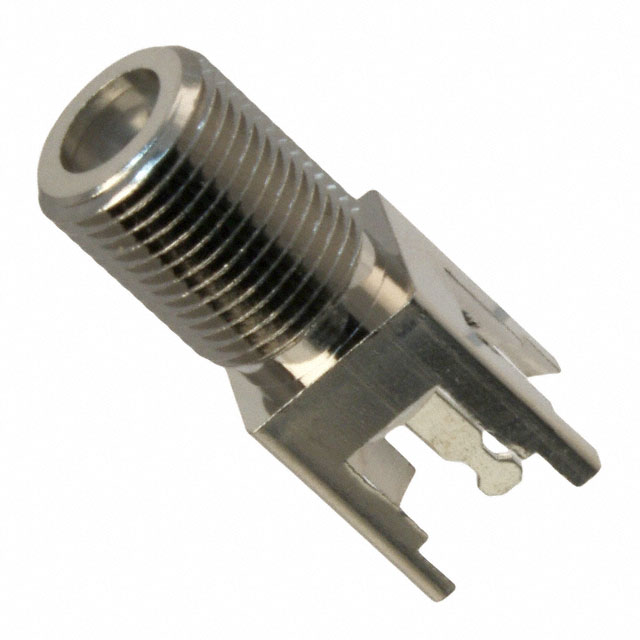

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 861A509 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 861A509 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 861A509 |
|---|---|
| Manufacturer | Bomar (Winchester Electronics) |
| Description | CONN F JACK STR NON-CONSTANT PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 861A509 | Manufacturer | Bomar (Winchester Electronics) |
|---|---|---|---|
| Description | CONN F JACK STR NON-CONSTANT PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5806 pcs | Data sheet | F Style Connectors |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | 991-1050 |
| Operating Temperature | -40°C ~ 65°C | Number of Ports | 1 |
| Mounting Type | Through Hole | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | - |
| Impedance | Non-Constant | Housing Color | Silver |
| Frequency - Max | 500MHz | Features | - |
| Fastening Type | Threaded | Dielectric Material | Polypropylene (PP) |
| Detailed Description | F Type Connector Jack, Female Socket Non-Constant Through Hole Solder Tab | Contact Termination | Solder Tab |
| Connector Type | Jack, Female Socket | Connector Style | F Type |
| Center Contact Plating | Nickel | Center Contact Material | Brass |
| Cable Group | - | Body Material | Brass |
| Body Finish | Nickel |
