Home > Products > Boxes, Enclosures, Racks > Backplanes > 23001021

23001021

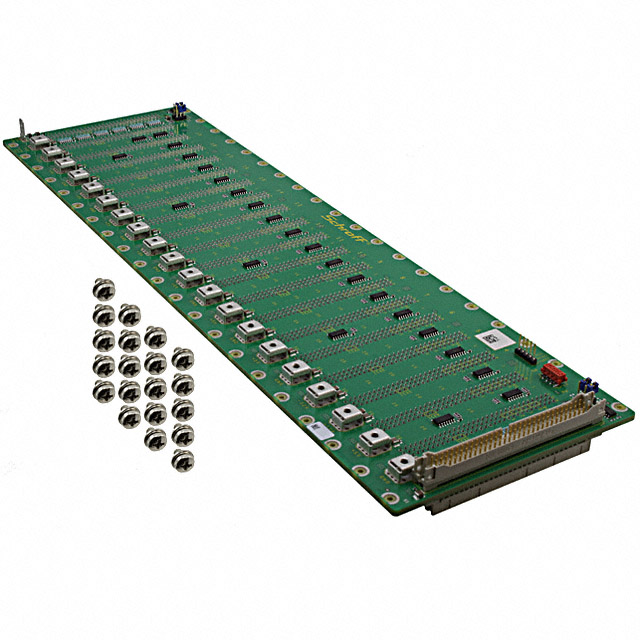

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 23001021 with confidence from Components-World.HK, 1 Year Warranty

Dowload 23001021 Details in PDF

Request a Quote

Part Number	23001021
Manufacturer	Birtcher / Pentair
Description	BACKPLANE VME J1 21SLOT 3U
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 80 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$389.901

Product parameter
Data sheet

Product parameter

Part Number	23001021	Manufacturer	Birtcher / Pentair
Description	BACKPLANE VME J1 21SLOT 3U	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	80 pcs	Data sheet	VME, VME64x Backplanes User Manual
Category	Boxes, Enclosures, Racks	Series	VMEbus
Panel Units	3U	Other Names	1439-1384 23001-021
Number of Channels	21	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Interface	VME J1	Detailed Description	Backplane 3U 21 Channel VME J1 0.800" (20.32mm) Connector Spacing
Connector Spacing	0.800" (20.32mm)
