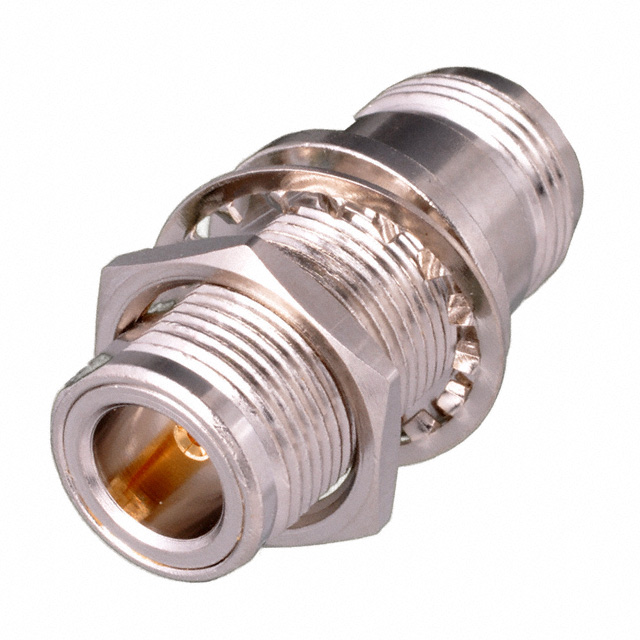

VNA100-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VNA100-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy VNA100-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | VNA100-1 |
|---|---|
| Manufacturer | Bel |
| Description | CONN ADAPT JACK-JACK N 50 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.142 | $3.766 | $3.672 | $3.389 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.201 | $2.919 | $2.73 | $2.504 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | VNA100-1 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN ADAPT JACK-JACK N 50 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12986 pcs | Data sheet | VNA100-1 Drawing |
| Category | Connectors, Interconnects | Style | Straight |
| Series | - | Packaging | Bulk |
| Other Names | 1427-1081 VNA1001 |
Operating Temperature | -55°C ~ 85°C |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | Impedance | 50 Ohm |
| Frequency - Max | 11GHz | Features | - |
| Fastening Type | Threaded, Threaded | Dielectric Material | Polyoxymethylene (POM) |
| Detailed Description | Adapter Coaxial Connector N Jack, Female Socket To N Jack, Female Socket 50 Ohm | Convert To (Adapter End) | N Jack, Female Socket |
| Convert From (Adapter End) | N Jack, Female Socket | Conversion Type | Same Series |
| Center Gender | Female to Female | Center Contact Plating | Gold |
| Center Contact Material | Brass | Body Material | Brass |
| Body Finish | Nickel | Adapter Type | Jack to Jack |
| Adapter Series | N to N |
