CBJR12

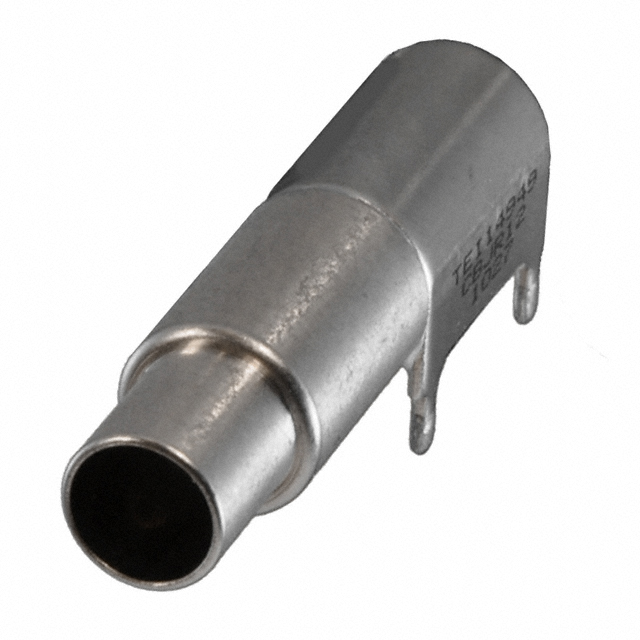

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CBJR12 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CBJR12 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CBJR12 |
|---|---|
| Manufacturer | Bel |
| Description | CONN MINI WECO JACK RA 75OHM PCB |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 10 pcs | ||||
|---|---|---|---|---|---|
| $21.227 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CBJR12 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN MINI WECO JACK RA 75OHM PCB | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 1646 pcs | Data sheet | CBJR12(A) Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | 1097-1051 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Through Hole, Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 75 Ohm |
| Housing Color | Silver | Frequency - Max | 1GHz |
| Features | - | Fastening Type | Push-Pull |
| Dielectric Material | - | Detailed Description | WECo, Mini, Twinaxial/Triaxial Connector Jack, Female Socket (Concentric) 75 Ohm Through Hole, Right Angle Solder |
| Contact Termination | Solder | Connector Type | Jack, Female Socket (Concentric) |
| Connector Style | WECo, Mini, Twinaxial/Triaxial | Center Contact Plating | Gold |
| Center Contact Material | - | Cable Group | - |
| Body Material | Brass | Body Finish | Nickel |
