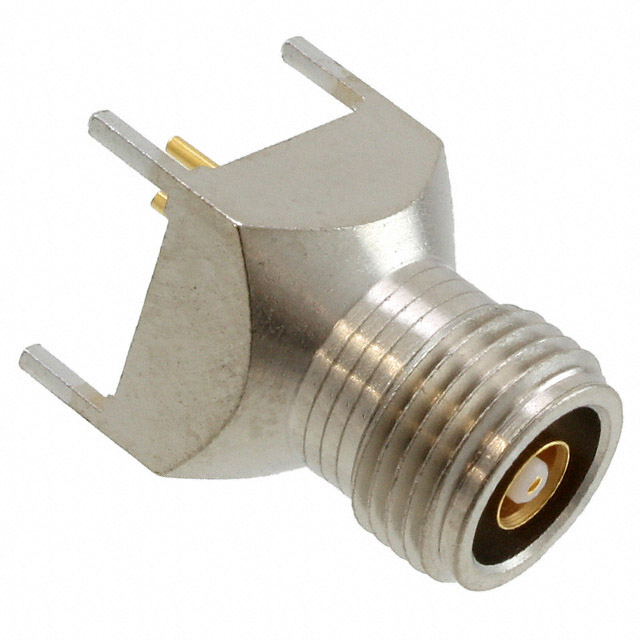

CBJ3157
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CBJ3157 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CBJ3157 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CBJ3157 |
|---|---|
| Manufacturer | Bel |
| Description | CONN TTM JACK STR PCB |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $17.143 | $16.135 | $15.631 | $15.423 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CBJ3157 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN TTM JACK STR PCB | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 2384 pcs | Data sheet | CBJ3157 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 400V |
| Shield Termination | Solder | Series | 3150 |
| Packaging | Bulk | Other Names | 1097-1179 |
| Operating Temperature | -65°C ~ 200°C | Number of Ports | 1 |
| Mounting Type | Through Hole | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | Non-Constant |
| Housing Color | Silver | Frequency - Max | 500MHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | - | Detailed Description | TTM, Triaxial Connector Jack, Female Socket Non-Constant Through Hole Solder |
| Contact Termination | Solder | Connector Type | Jack, Female Socket |
| Connector Style | TTM, Triaxial | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | - |
| Body Material | Brass | Body Finish | Nickel |
