131-3701-811

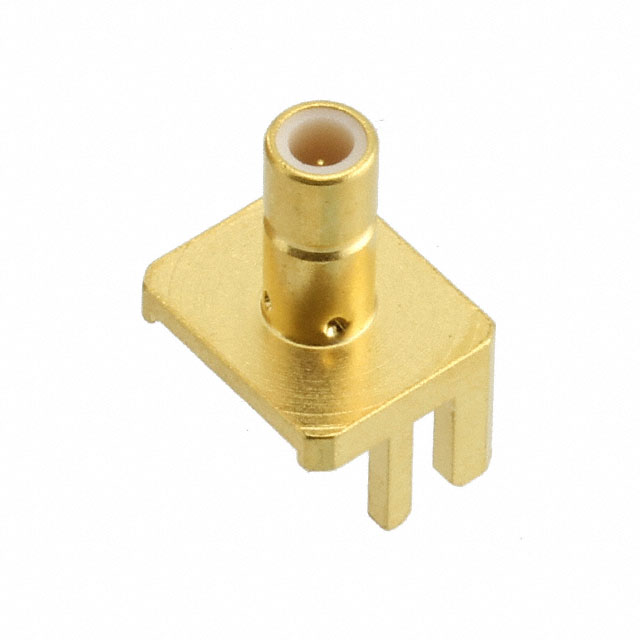

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 131-3701-811 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 131-3701-811 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 131-3701-811 |
|---|---|
| Manufacturer | Bel |
| Description | CONN SMB JACK STR 50OHM EDGE MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.946 | $5.404 | $5.269 | $4.864 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $4.594 | $4.188 | $3.918 | $3.594 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 131-3701-811 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN SMB JACK STR 50OHM EDGE MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8980 pcs | Data sheet | 131-3701-811 Spec131-3701-81x Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 335V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | 1313701811 J10199 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Board Edge, End Launch | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 4GHz |
| Features | - | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | SMB Connector Jack, Male Pin 50 Ohm Board Edge, End Launch Solder |
| Contact Termination | Solder | Connector Type | Jack, Male Pin |
| Connector Style | SMB | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | - |
| Body Material | Brass | Body Finish | Gold |
