131-3701-801

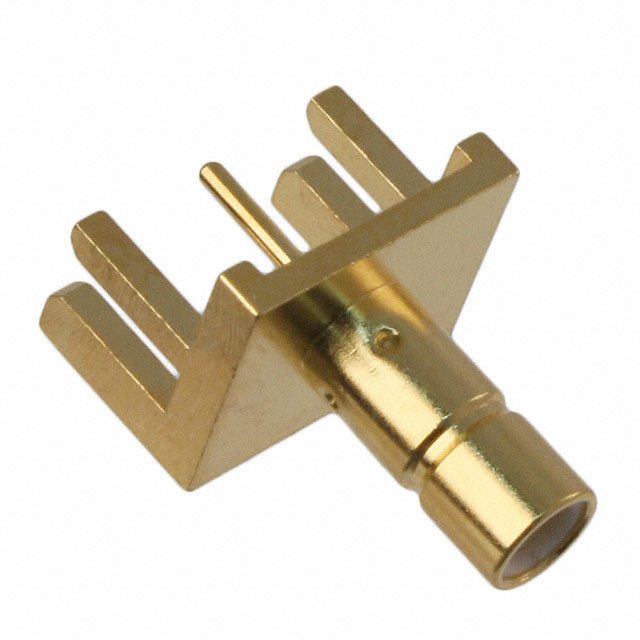

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 131-3701-801 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 131-3701-801 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 131-3701-801 |
|---|---|
| Manufacturer | Bel |
| Description | CONN SMB JACK STR 50OHM EDGE MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.978 | $1.898 | $1.74 | $1.661 | $1.582 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.384 | $1.344 | $1.147 | $1.068 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 131-3701-801 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN SMB JACK STR 50OHM EDGE MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 35122 pcs | Data sheet | 131-3701-80x Drawing131-3701-801 Spec |
| Category | Connectors, Interconnects | Voltage Rating | 335V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | 131-3701-801-ND 1313701801 J10107 Q1202136 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Board Edge, End Launch | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 4GHz |
| Features | - | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | SMB Connector Jack, Male Pin 50 Ohm Board Edge, End Launch Solder |
| Contact Termination | Solder | Connector Type | Jack, Male Pin |
| Connector Style | SMB | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | - |
| Body Material | Brass | Body Finish | Gold |
