HDSP-H8A1

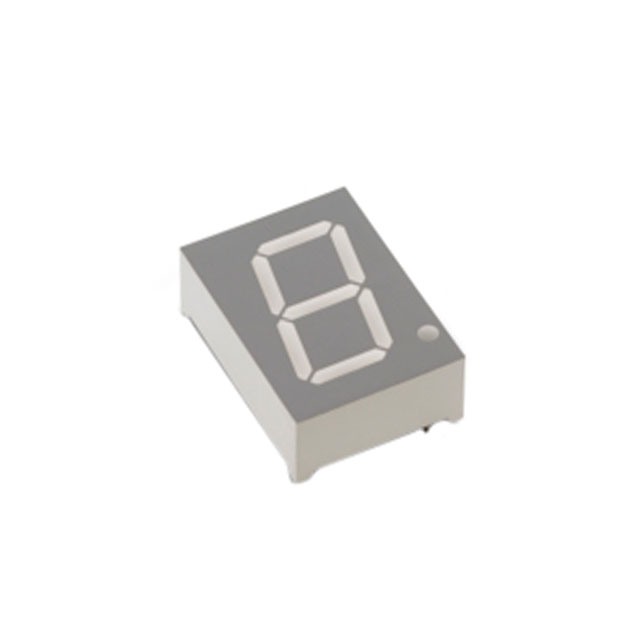

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HDSP-H8A1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HDSP-H8A1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HDSP-H8A1 |
|---|---|
| Manufacturer | Avago Technologies (Broadcom Limited) |
| Description | DISPLAY 7SEGMENT DEEP RED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5832 pcs | ||||
|---|---|---|---|---|---|
| $0.231 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HDSP-H8A1 | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | DISPLAY 7SEGMENT DEEP RED | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 97092 pcs | Data sheet | HDSP-H8x1, HDSP-H8x3 |
| Category | Optoelectronics | Wavelength - Peak | 644nm |
| Voltage - Forward (Vf) (Typ) | 2V | Size / Dimension | 1.091" H x 0.787" W x 0.394" D (27.70mm x 20.00mm x 10.00mm) |
| Series | - | Power Dissipation (Max) | 52mW |
| Packaging | Tube | Package / Case | 16-DIP (0.600", 15.24mm) |
| Number of Characters | 1 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Millicandela Rating | 29mcd | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Display Type | 7-Segment |
| Digit/Alpha Size | 0.80" (20.32mm) | Detailed Description | Character LED Display Module Red 7-Segment 1 Character Common Anode 2V 20mA 1.091" H x 0.787" W x 0.394" D (27.70mm x 20.00mm x 10.00mm) 16-DIP (0.600", 15.24mm) |
| Current - Test | 20mA | Common Pin | Common Anode |
| Color | Red |
