HDSP-H5E3

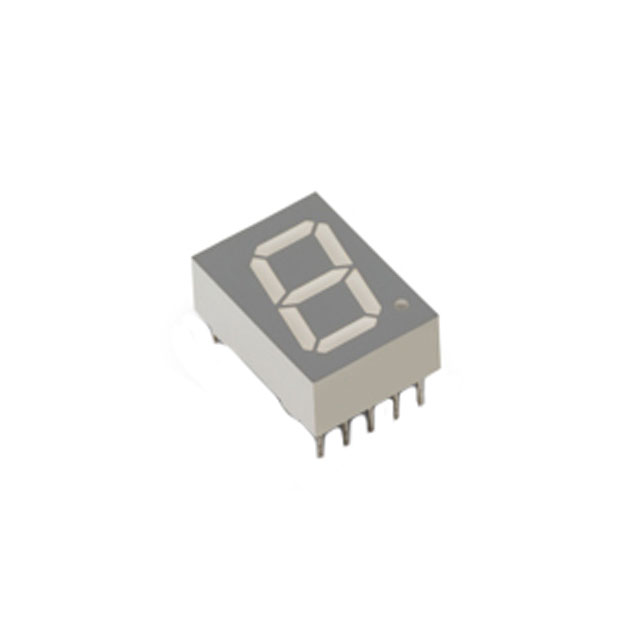

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HDSP-H5E3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HDSP-H5E3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HDSP-H5E3 |
|---|---|
| Manufacturer | Avago Technologies (Broadcom Limited) |
| Description | DISPLAY 7SEGMENT RED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 7250 pcs | ||||
|---|---|---|---|---|---|
| $0.177 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HDSP-H5E3 | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | DISPLAY 7SEGMENT RED | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 125463 pcs | Data sheet | HDSP-H5x1, HDSP-H5x3 |
| Category | Optoelectronics | Wavelength - Peak | 634nm |
| Voltage - Forward (Vf) (Typ) | 2V | Size / Dimension | 0.693" H x 0.488" W x 0.272" D (17.60mm x 12.40mm x 6.90mm) |
| Series | - | Power Dissipation (Max) | 52mW |
| Packaging | Tube | Package / Case | 10-DIP (0.600", 15.24mm) |
| Number of Characters | 1 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Millicandela Rating | 40mcd | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Display Type | 7-Segment |
| Digit/Alpha Size | 0.52" (13.21mm) | Detailed Description | Character LED Display Module Red 7-Segment 1 Character Common Cathode 2V 20mA 0.693" H x 0.488" W x 0.272" D (17.60mm x 12.40mm x 6.90mm) 10-DIP (0.600", 15.24mm) |
| Current - Test | 20mA | Common Pin | Common Cathode |
| Color | Red |
