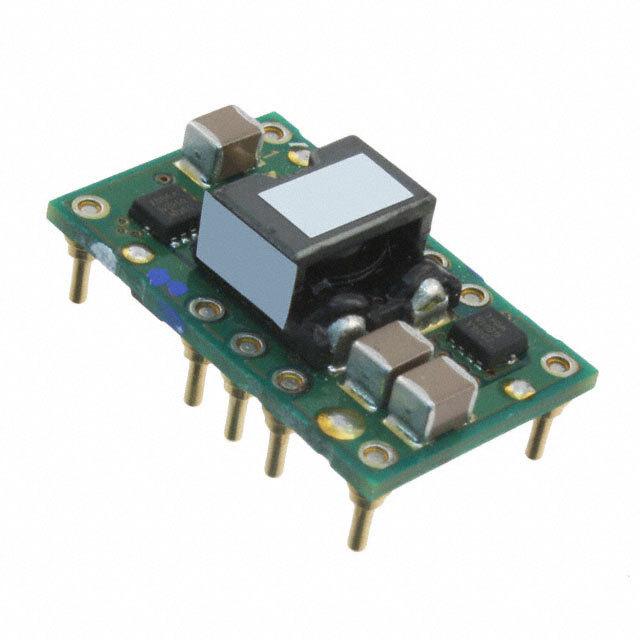

PTH05060WAH
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PTH05060WAH with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PTH05060WAH with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PTH05060WAH |
|---|---|
| Manufacturer | Astec America (Artesyn Embedded Technologies) |
| Description | DC DC CONVERTER 0.8-3.6V 36W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PTH05060WAH | Manufacturer | Astec America (Artesyn Embedded Technologies) |
|---|---|---|---|
| Description | DC DC CONVERTER 0.8-3.6V 36W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4558 pcs | Data sheet | PTH05060 Series |
| Category | Power Supplies - Board Mount | Voltage - Output 3 | - |
| Voltage - Output 2 | - | Voltage - Output 1 | 0.8 ~ 3.6 V |
| Voltage - Input (Min) | 4.5V | Voltage - Input (Max) | 5.5V |
| Type | Non-Isolated PoL Module | Size / Dimension | 1.00" L x 0.62" W x 0.35" H (25.4mm x 15.7mm x 8.9mm) |
| Series | PTH05060W | Power (Watts) | 36W |
| Packaging | Tray | Package / Case | 10-DIP Module |
| Other Names | 393-1069 393-1069-ND 393-1102 |
Operating Temperature | -40°C ~ 85°C |
| Number of Outputs | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Remote On/Off, SCP, UVLO | Efficiency | 94% |
| Detailed Description | Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 3.6 V 10A 4.5V - 5.5V Input | Current - Output (Max) | 10A |
| Applications | ITE (Commercial) |
