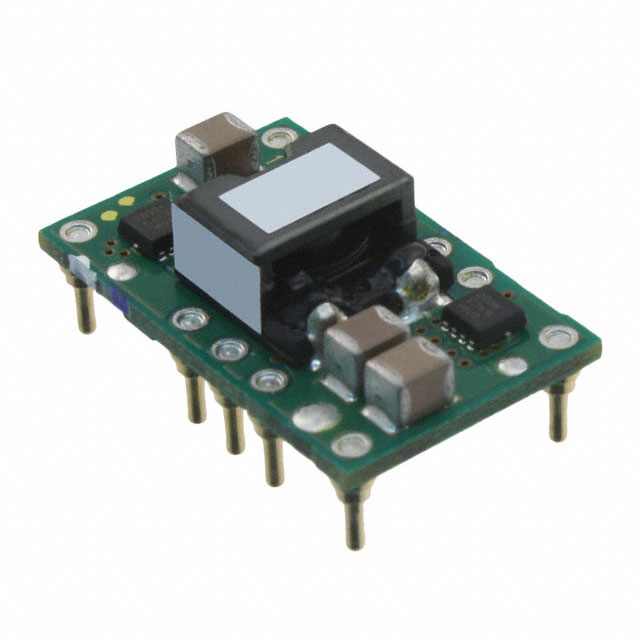

PTH05060WAD
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PTH05060WAD with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PTH05060WAD with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PTH05060WAD |
|---|---|
| Manufacturer | Astec America (Artesyn Embedded Technologies) |
| Description | DC DC CONVERTER 0.8-3.6V 36W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 48 pcs | |
|---|---|---|---|---|---|
| $5.985 | $5.941 | $5.894 | $5.802 | ||
| 96 pcs | 144 pcs | 288 pcs | 528 pcs | ||
| $5.526 | $5.065 | $4.973 | $4.90 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PTH05060WAD | Manufacturer | Astec America (Artesyn Embedded Technologies) |
|---|---|---|---|
| Description | DC DC CONVERTER 0.8-3.6V 36W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7372 pcs | Data sheet | PTH05060 Series |
| Category | Power Supplies - Board Mount | Voltage - Output 3 | - |
| Voltage - Output 2 | - | Voltage - Output 1 | 0.8 ~ 3.6 V |
| Voltage - Input (Min) | 4.5V | Voltage - Input (Max) | 5.5V |
| Type | Non-Isolated PoL Module | Size / Dimension | 1.00" L x 0.62" W x 0.35" H (25.4mm x 15.7mm x 8.9mm) |
| Series | PTH05060W | Power (Watts) | 36W |
| Packaging | Tray | Package / Case | 10-DIP Module |
| Other Names | 393-1165 | Operating Temperature | -40°C ~ 85°C |
| Number of Outputs | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Remote On/Off, SCP, UVLO |
| Efficiency | 94% | Detailed Description | Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 3.6 V 10A 4.5V - 5.5V Input |
| Current - Output (Max) | 10A | Applications | ITE (Commercial) |
