Home > Products > Sensors, Transducers > Current Transducers > CQ3302

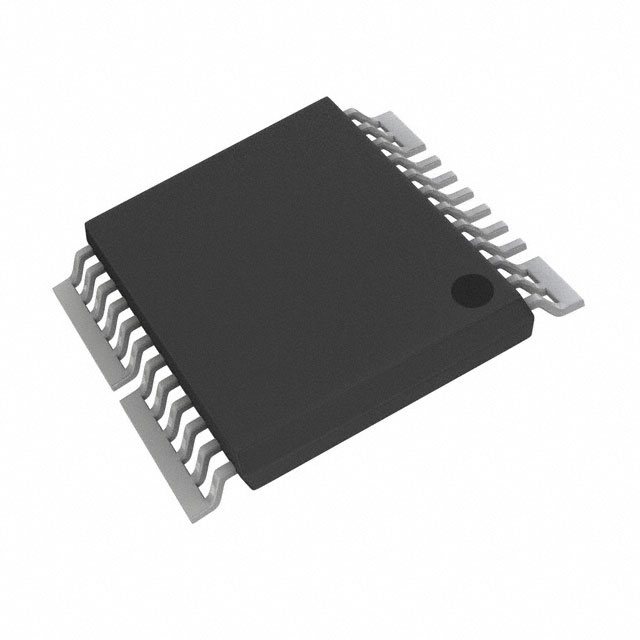

CQ3302

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CQ3302 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	CQ3302
Manufacturer	Asahi Kasei Microdevices / AKM Semiconductor
Description	SENSOR CURRENT HALL 20A AC/DC
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 29816 pcs
Reference Price (In US Dollars)	1000 pcs	3000 pcs
Reference Price (In US Dollars)	$1.14	$1.101

Product parameter
Data sheet

Product parameter

Part Number	CQ3302	Manufacturer	Asahi Kasei Microdevices / AKM Semiconductor
Description	SENSOR CURRENT HALL 20A AC/DC	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	29816 pcs	Data sheet	CQ-3302
Category	Sensors, Transducers	Voltage - Supply	4.5 V ~ 5.5 V
Series	CQ	Sensor Type	Hall Effect, Open Loop
Sensitivity	100mV/A	Response Time	0.5µs
Polarization	Bidirectional	Packaging	Tape & Reel (TR)
Package / Case	24-LSSOP (0.220", 5.60mm Width), 10 Leads	Output	Ratiometric, Voltage
Other Names	974-1088-2 CQ-3302 CQ3302-ND	Operating Temperature	-40°C ~ 90°C
Number of Channels	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	2A (4 Weeks)	Manufacturer Standard Lead Time	14 Weeks
Linearity	±0.6%	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency	1MHz	For Measuring	AC/DC
Detailed Description	Current Sensor 21A 1 Channel Hall Effect, Open Loop Bidirectional 24-LSSOP (0.220", 5.60mm Width), 10 Leads	Current - Supply (Max)	11mA
Current - Sensing	21A	Accuracy	±0.5%
