Home > Products > Sensors, Transducers > Current Transducers > CQ3204

CQ3204

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CQ3204 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	CQ3204
Manufacturer	Asahi Kasei Microdevices / AKM Semiconductor
Description	CORELESS CURENT SENSOR / 20A W/S
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 32637 pcs
Reference Price (In US Dollars)	1000 pcs
Reference Price (In US Dollars)	$1.166

Product parameter
Data sheet

Product parameter

Part Number	CQ3204	Manufacturer	Asahi Kasei Microdevices / AKM Semiconductor
Description	CORELESS CURENT SENSOR / 20A W/S	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	32637 pcs	Data sheet	CQ-3204
Category	Sensors, Transducers	Voltage - Supply	2.7 V ~ 3.63 V
Series	-	Sensor Type	Hall Effect, Open Loop
Sensitivity	30mV/A	Response Time	0.5µs
Polarization	Bidirectional	Packaging	Tape & Reel (TR)
Package / Case	24-LSSOP (0.220", 5.60mm Width), 10 Leads	Output	Ratiometric, Current
Other Names	974-1133-2	Operating Temperature	-40°C ~ 90°C (TA)
Number of Channels	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	14 Weeks
Linearity	±0.6%	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency	1MHz	For Measuring	AC/DC
Detailed Description	Current Sensor 44A 1 Channel Hall Effect, Open Loop Bidirectional 24-LSSOP (0.220", 5.60mm Width), 10 Leads	Current - Supply (Max)	9.6mA
Current - Sensing	44A	Accuracy	±1.2%

Related products
Related news

Related products

Part#:~~CQ330G~~
Manufacturers:~~Asahi Kasei Microdevices / AKM Semiconductor~~
Description:~~SENSOR CURRENT HALL 20A AC/DC~~
In Stock:~~33918~~

~~$1.139/pcs~~RFQ

Part#:~~CQ3301~~
Manufacturers:~~Asahi Kasei Microdevices / AKM Semiconductor~~
Description:~~SENSOR CURRENT HALL 20A AC/DC~~
In Stock:~~26480~~

~~$1.336/pcs~~RFQ

Part#:~~CQ330B~~
Manufacturers:~~Asahi Kasei Microdevices / AKM Semiconductor~~
Description:~~SENSOR CURRENT HALL 20A AC/DC~~
In Stock:~~27151~~

~~$1.11/pcs~~RFQ

Part#:~~CQ330E~~
Manufacturers:~~Asahi Kasei Microdevices / AKM Semiconductor~~
Description:~~SENSOR CURRENT HALL 20A AC/DC~~
In Stock:~~35940~~

~~$1.092/pcs~~RFQ

CQ30CC-WP Image

Part#:~~CQ30CC-WP~~
Manufacturers:~~Chip Quik, Inc.~~
Description:~~30CC SYRINGE (WITH PISTON, FRONT~~
In Stock:~~5123~~

~~$6.98/pcs~~RFQ

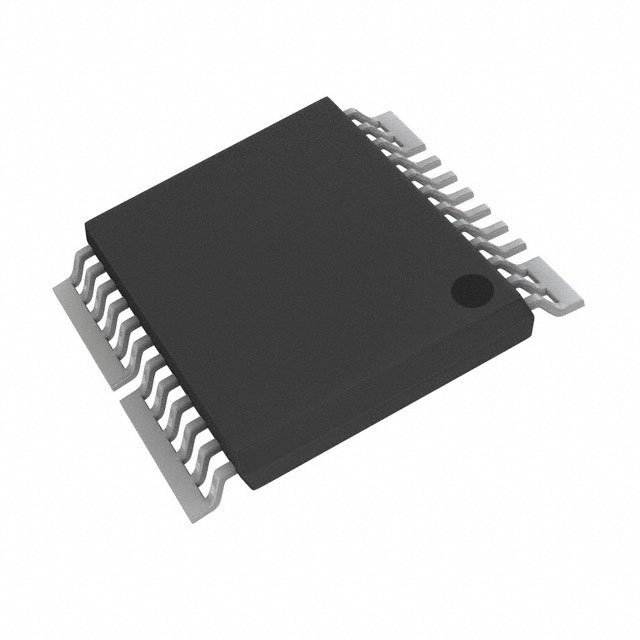

Part#:~~CQ3203~~
