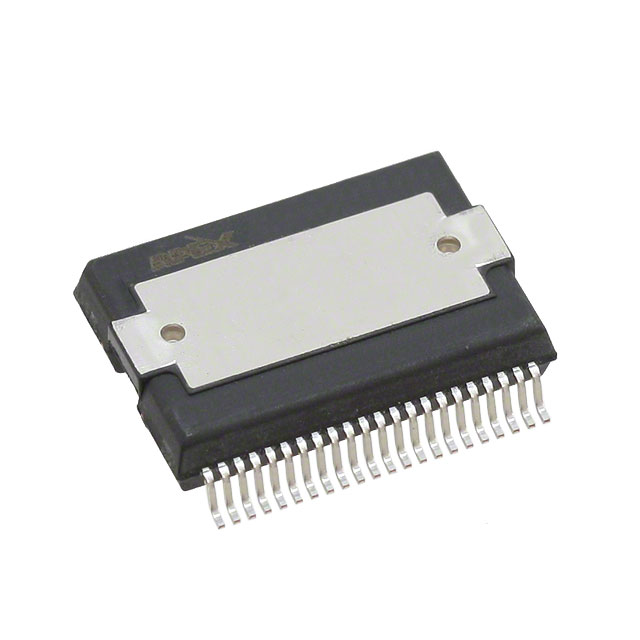

SA306AHU
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SA306AHU with confidence from Components-World.HK, 1 Year Warranty
Dowload SA306AHU Details in PDFSee Product Specifications for product details.
Buy SA306AHU with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SA306AHU |
|---|---|
| Manufacturer | Apex Microtechnology |
| Description | IC MOTOR DRIVER PWM 44HSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 250 pcs | |
|---|---|---|---|---|---|
| $9.272 | $8.577 | $7.325 | $6.722 | ||
- Product parameter
Product parameter
| Part Number | SA306AHU | Manufacturer | Apex Microtechnology |
|---|---|---|---|
| Description | IC MOTOR DRIVER PWM 44HSOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4818 pcs | Data sheet | |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 4.5 V ~ 5.5 V |
| Voltage - Load | 9 V ~ 60 V | Technology | DMOS |
| Supplier Device Package | 44-HSOP | Series | Apex Precision Power® |
| Rds On (Typ) | 250 mOhm LS, 300 mOhm HS | Packaging | Bulk |
| Package / Case | 44-BSSOP (0.433", 11.00mm Width) Exposed Pad | Output Configuration | Half Bridge (3) |
| Other Names | 598-1810 598-2078 598-2078-ND SA306AHU-FH |
Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Manufacturer Standard Lead Time | 9 Weeks | Load Type | Inductive |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Interface | PWM |
| Features | - | Fault Protection | Current Limiting, Over Temperature, Shoot-Through, UVLO |
| Detailed Description | Half Bridge (3) Driver DC Motors, General Purpose, Solenoids DMOS 44-HSOP | Current - Peak Output | 17A |
| Current - Output / Channel | 8A | Base Part Number | SA30* |
| Applications | DC Motors, General Purpose, Solenoids |
