SA306-IHZ

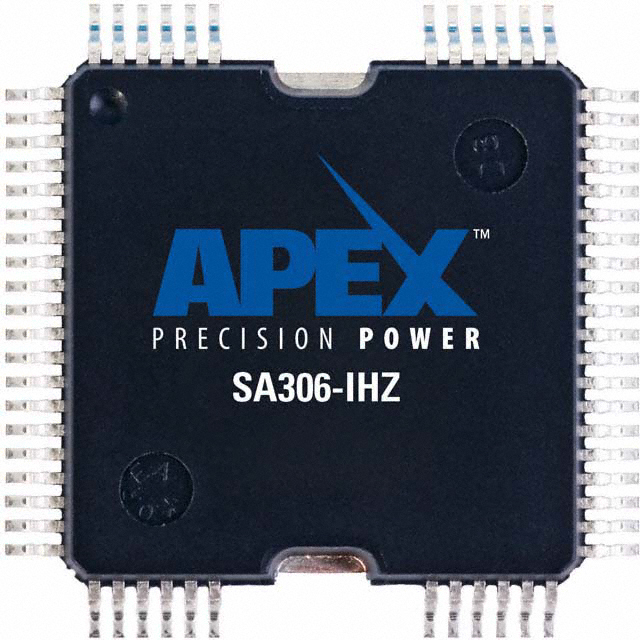

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SA306-IHZ with confidence from Components-World.HK, 1 Year Warranty
Dowload SA306-IHZ Details in PDFSee Product Specifications for product details.
Buy SA306-IHZ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SA306-IHZ |
|---|---|
| Manufacturer | Apex Microtechnology |
| Description | IC MOTOR DRIVER PWM 64QFP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
Product parameter
| Part Number | SA306-IHZ | Manufacturer | Apex Microtechnology |
|---|---|---|---|
| Description | IC MOTOR DRIVER PWM 64QFP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5488 pcs | Data sheet | |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 4.5 V ~ 5.5 V |
| Voltage - Load | 9 V ~ 60 V | Technology | DMOS |
| Supplier Device Package | 64-PowerQFP | Series | Apex Precision Power® |
| Rds On (Typ) | 250 mOhm LS, 300 mOhm HS | Packaging | Bulk |
| Package / Case | 64-PowerQFP | Output Configuration | Half Bridge (3) |
| Other Names | 598-1486 | Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Load Type | Inductive | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | PWM | Features | - |
| Fault Protection | Current Limiting, Over Temperature, Shoot-Through, UVLO | Detailed Description | Half Bridge (3) Driver DC Motors, General Purpose, Solenoids DMOS 64-PowerQFP |
| Current - Peak Output | 17A | Current - Output / Channel | 5A |
| Base Part Number | SA30* | Applications | DC Motors, General Purpose, Solenoids |
