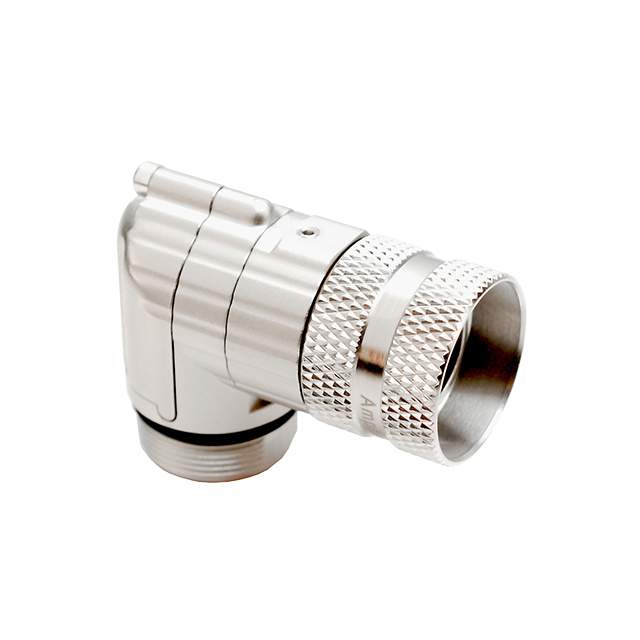

MA1EAP1700
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MA1EAP1700 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MA1EAP1700 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MA1EAP1700 |
|---|---|
| Manufacturer | Amphenol Tuchel Electronics |
| Description | CONN PLUG HSG F/M 17P INLN RA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $6.273 | $5.826 | $5.228 | $5.079 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $4.481 | $4.182 | $4.093 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | MA1EAP1700 | Manufacturer | Amphenol Tuchel Electronics |
|---|---|---|---|
| Description | CONN PLUG HSG F/M 17P INLN RA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8146 pcs | Data sheet | M23, 40 Amphenol vs. IntercontecMA1EAP1700 |
| Category | Connectors, Interconnects | Type | For Female Sockets or Male Pins |
| Shielding | Shielded | Shell Size, MIL | - |
| Shell Size - Insert | M23-17 | Shell Material | Zinc Die Cast |
| Shell Finish | Nickel | Series | MotionGrade™ M23 Signal Standard Series, Threaded |
| Packaging | Bulk | Other Names | 889-1072 |
| Orientation | P | Operating Temperature | -20°C ~ 130°C |
| Number of Positions | 17 | Note | Contacts Not Included |
| Mounting Type | Free Hanging (In-Line), Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyamide (PA66), Nylon 6/6 | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Includes | - | Housing Color | Silver |
| Features | Coupling Nut, Rotatable | Fastening Type | Threaded |
| Detailed Description | 17 Position Circular Connector Plug Housing Free Hanging (In-Line), Right Angle Coupling Nut, Rotatable | Coupling Nut Material, Plating | Copper Alloy, Nickel |
| Coupling Nut Diameter | 1.016" (25.81mm) | Contact Type | Crimp |
| Contact Size | 1.0mm | Contact Shape | Circular |
| Connector Type | Plug Housing |
