MA1EAP1600

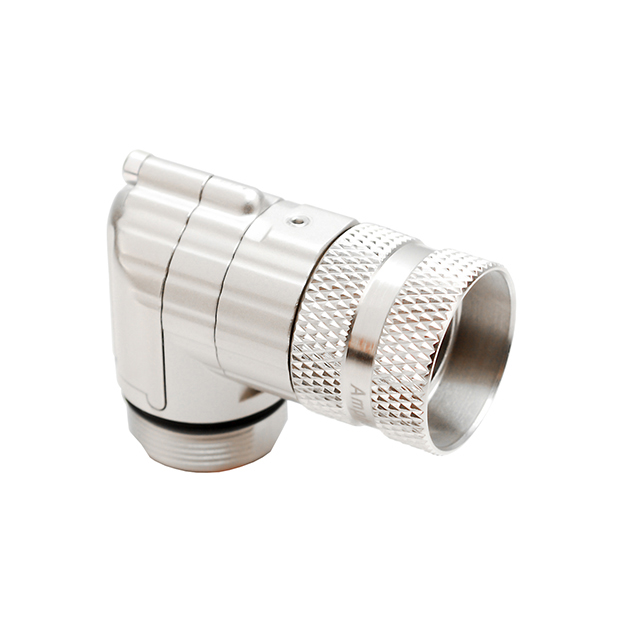

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MA1EAP1600 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MA1EAP1600 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MA1EAP1600 |
|---|---|
| Manufacturer | Amphenol Tuchel Electronics |
| Description | CONN PLUG HSG F/M 16P INLN RA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $4.475 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MA1EAP1600 | Manufacturer | Amphenol Tuchel Electronics |
|---|---|---|---|
| Description | CONN PLUG HSG F/M 16P INLN RA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8370 pcs | Data sheet | MA1EAP1600 Drawing |
| Category | Connectors, Interconnects | Type | For Female Sockets or Male Pins |
| Shielding | Shielded | Shell Size, MIL | - |
| Shell Size - Insert | M23-16 | Shell Material | Zinc Die Cast |
| Shell Finish | Nickel | Series | MotionGrade™ M23 Signal Standard Series, Threaded |
| Packaging | Bulk | Orientation | P |
| Operating Temperature | -20°C ~ 130°C | Number of Positions | 16 |
| Note | Contacts Not Included | Mounting Type | Free Hanging (In-Line), Right Angle |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polyamide (PA66), Nylon 6/6 |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Includes | - |
| Housing Color | Silver | Features | Coupling Nut, Rotatable |
| Fastening Type | Threaded | Detailed Description | 16 Position Circular Connector Plug Housing Free Hanging (In-Line), Right Angle Coupling Nut, Rotatable |
| Coupling Nut Material, Plating | Copper Alloy, Nickel | Coupling Nut Diameter | 1.016" (25.81mm) |
| Contact Type | Crimp | Contact Size | 1.0mm |
| Contact Shape | Circular | Connector Type | Plug Housing |
