3285-6001

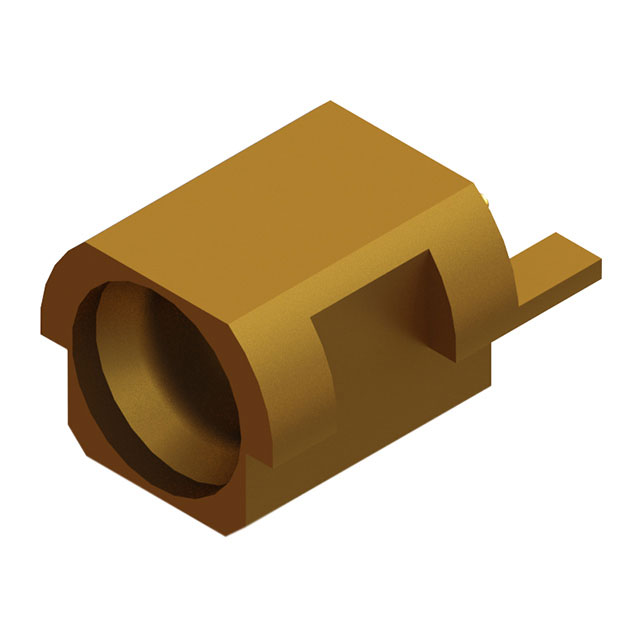

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3285-6001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3285-6001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3285-6001 |
|---|---|
| Manufacturer | Amphenol SV Microwave |
| Description | CONN SMPM PLUG STR 50OHM EDGEMNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $10.025 | $9.05 | $8.67 | $8.128 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $7.857 | $7.424 | $7.207 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3285-6001 | Manufacturer | Amphenol SV Microwave |
|---|---|---|---|
| Description | CONN SMPM PLUG STR 50OHM EDGEMNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4522 pcs | Data sheet | 3285-6001 Drawing |
| Category | Connectors, Interconnects | Shield Termination | Solder |
| Series | - | Packaging | Bulk |
| Operating Temperature | -55°C ~ 125°C | Number of Ports | 1 |
| Mounting Type | Board Edge, Cutout; Surface Mount | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 40GHz |
| Features | Full Detent | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | SMPM Connector Plug, Male Pin 50 Ohm Board Edge, Cutout; Surface Mount Solder |
| Contact Termination | Solder | Connector Type | Plug, Male Pin |
| Connector Style | SMPM | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | - |
| Body Material | Stainless Steel | Body Finish | Gold |
