328522

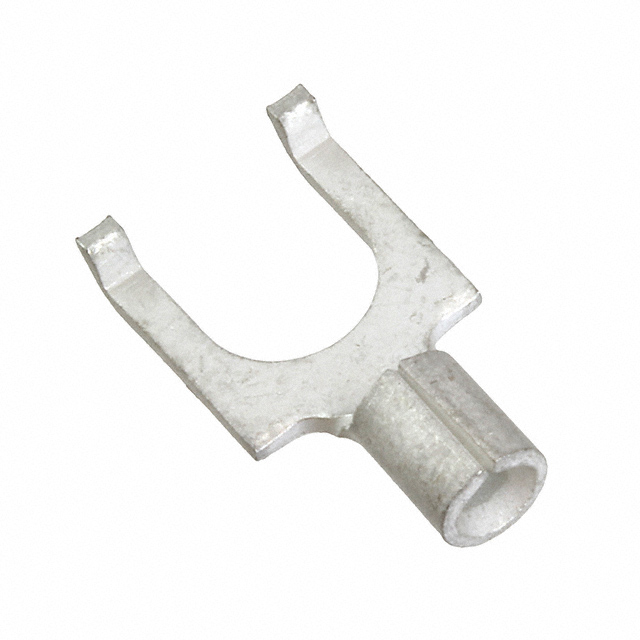

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 328522 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 328522 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 328522 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SPADE TERM 16-22AWG #10 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.072 | $0.068 | $0.058 | $0.051 | $0.047 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.042 | $0.04 | $0.033 | $0.03 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 328522 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN SPADE TERM 16-22AWG #10 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 775382 pcs | Data sheet | 328522 |
| Category | Connectors, Interconnects | Wire Gauge | 16-22 AWG |
| Width - Outer Edges | 0.296" (7.52mm) | Tongue Inside Opening | 0.197" (5.00mm) |
| Termination | Crimp | Terminal Type | Flanged |
| Stud/Tab Size | 10 Stud | Series | Budget |
| Packaging | Bulk | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | - |
| Manufacturer Standard Lead Time | 11 Weeks | Length - Termination | 0.181" (4.60mm) |
| Length - Ring Center to Termination | 0.203" (5.16mm) | Length - Overall | 0.514" (13.06mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Diameter | - |
| Insulation | Non-Insulated | Features | Serrated Termination |
| Detailed Description | 10 Stud Spade Terminal Connector Crimp 16-22 AWG | Contact Material | Copper |
| Contact Finish | Tin | Color | - |
