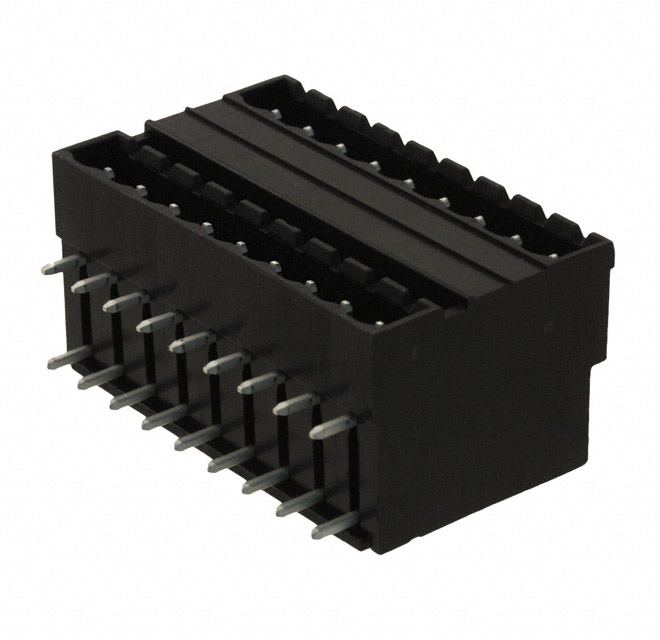

ELFA18110
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELFA18110 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELFA18110 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELFA18110 |
|---|---|
| Manufacturer | Amphenol Pcd |
| Description | TERM BLOCK HDR 18POS 90DEG 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $1.381 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ELFA18110 | Manufacturer | Amphenol Pcd |
|---|---|---|---|
| Description | TERM BLOCK HDR 18POS 90DEG 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23816 pcs | Data sheet | ELFA Series Part Numbering, Drawing |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | ELFA | Screw Size | - |
| Positions Per Level | 9 | Plug Wire Entry | - |
| Pitch | 0.197" (5.00mm) | Packaging | Bulk |
| Other Names | APC1167 | Operating Temperature | 125°C |
| Number of Positions | 18 | Number of Levels | 2 |
| Mounting Type | Through Hole | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 1.107" (28.12mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | 90°, Right Angle |
| Features | - | Detailed Description | 18 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole |
| Current - UL | 15A | Current - IEC | - |
| Contact Tail Length | 0.155" (3.94mm) | Contact Mating Finish | Tin |
| Contact Material | Brass | Color | Black |
