ELFA16110

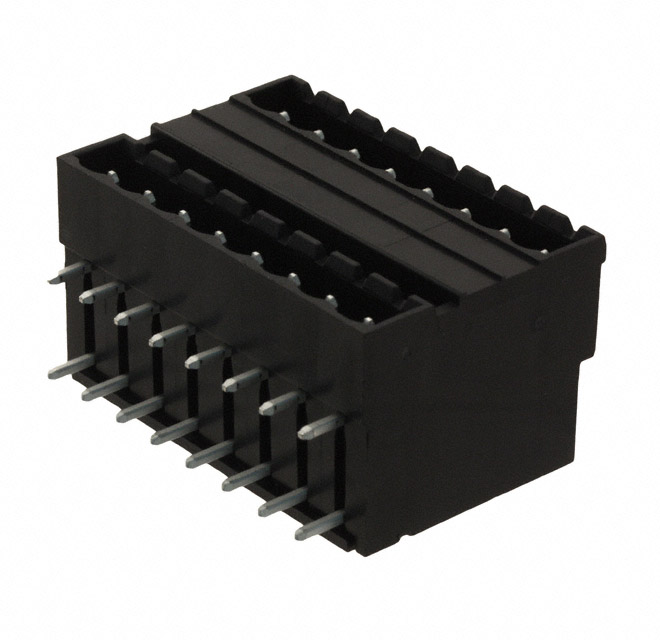

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELFA16110 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELFA16110 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELFA16110 |
|---|---|
| Manufacturer | Amphenol Pcd |
| Description | TERM BLOCK HDR 16POS 90DEG 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.981 | $1.511 | $1.415 | $1.258 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.23 | $1.135 | $1.025 | $0.909 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ELFA16110 | Manufacturer | Amphenol Pcd |
|---|---|---|---|
| Description | TERM BLOCK HDR 16POS 90DEG 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 43430 pcs | Data sheet | ELF Series |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | ELFA | Screw Size | - |
| Positions Per Level | 8 | Plug Wire Entry | - |
| Pitch | 0.197" (5.00mm) | Packaging | Bulk |
| Other Names | APC1166 | Operating Temperature | 125°C |
| Number of Positions | 16 | Number of Levels | 2 |
| Mounting Type | Through Hole | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 1.107" (28.12mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | 90°, Right Angle |
| Features | - | Detailed Description | 16 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole |
| Current - UL | 15A | Current - IEC | - |
| Contact Tail Length | 0.155" (3.94mm) | Contact Mating Finish | Tin |
| Contact Material | Brass | Color | Black |
