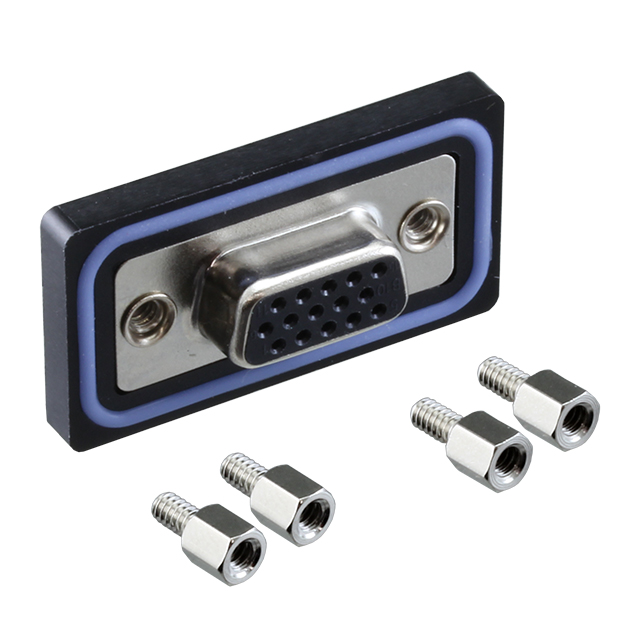

HDB-15PFFP-SL8001
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HDB-15PFFP-SL8001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HDB-15PFFP-SL8001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HDB-15PFFP-SL8001 |
|---|---|
| Manufacturer | Amphenol LTW |
| Description | CONN DSUB RCPT 15POS PNL MT SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.47 | $3.317 | $3.016 | $2.865 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.789 | $2.488 | $2.337 | $2.066 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HDB-15PFFP-SL8001 | Manufacturer | Amphenol LTW |
|---|---|---|---|
| Description | CONN DSUB RCPT 15POS PNL MT SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14868 pcs | Data sheet | HDB-15PFFP-SL8001 DrawingPart Number Guide |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) High Density | Shell Material, Finish | Steel, Nickel Plated |
| Series | - | Packaging | Bulk |
| Other Names | 1754-1430 HDB-15PFFP-SL8001-ND |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 3 | Number of Positions | 15 |
| Mounting Type | Panel Mount, Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Housing Material | Polybutylene Terephthalate (PBT) | Flange Feature | Mating Side, Female Screwlock (4-40) |
| Features | Shielded | Detailed Description | 15 Position D-Sub, High Density Receptacle, Female Sockets Connector |
| Current Rating | 2A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub, High Density |
| Color | Black | Backset Spacing | - |
