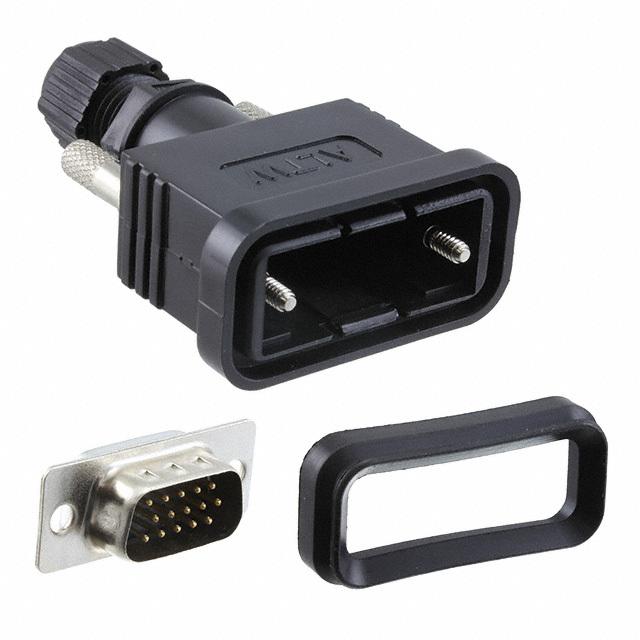

HDB-15BMMA-SL7001
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HDB-15BMMA-SL7001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HDB-15BMMA-SL7001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HDB-15BMMA-SL7001 |
|---|---|
| Manufacturer | Amphenol LTW |
| Description | HD-SUB CONN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.822 | $2.704 | $2.469 | $2.351 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.234 | $1.998 | $1.881 | $1.646 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HDB-15BMMA-SL7001 | Manufacturer | Amphenol LTW |
|---|---|---|---|
| Description | HD-SUB CONN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21733 pcs | Data sheet | Part Number GuideHDB-15BMMA-SL7001 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) High Density | Shell Material, Finish | - |
| Series | - | Packaging | Bulk |
| Other Names | 1754-1429 HDB-15BMMA-SL7001-ND |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 3 | Number of Positions | 15 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Housing Material | Acrylonitrile Butadiene Styrene (ABS) | Flange Feature | Housing/Shell (Unthreaded) |
| Features | Assembly, Shielded | Detailed Description | 15 Position D-Sub, High Density Plug, Male Pins Connector |
| Current Rating | 2A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub, High Density |
| Color | Black | Backset Spacing | - |
