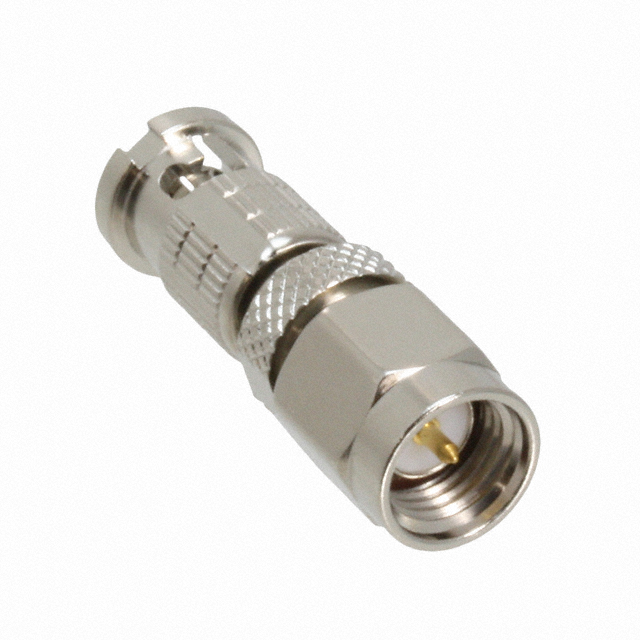

APH-HDBNCP-SMAP
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APH-HDBNCP-SMAP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APH-HDBNCP-SMAP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APH-HDBNCP-SMAP |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN ADAPT HDBNC PLUG-SMA PLUG |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $12.765 | $11.521 | $11.038 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $10.349 | $10.004 | $9.452 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | APH-HDBNCP-SMAP | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN ADAPT HDBNC PLUG-SMA PLUG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3945 pcs | Data sheet | APH-HDBNCP-SMAP Drawing |
| Category | Connectors, Interconnects | Style | Straight |
| Series | - | Packaging | Bulk |
| Other Names | APHHDBNCPSMAP ARF2089 |
Operating Temperature | -65°C ~ 165°C |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Frequency - Max | 6GHz | Features | - |
| Fastening Type | Bayonet Lock, Threaded | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | Adapter Coaxial Connector BNC HD Plug, Male Pin To SMA Plug, Male Pin 50 Ohm | Convert To (Adapter End) | SMA Plug, Male Pin |
| Convert From (Adapter End) | BNC HD Plug, Male Pin | Conversion Type | Between Series |
| Center Gender | Male to Male | Center Contact Plating | Gold |
| Center Contact Material | Brass | Body Material | Brass |
| Body Finish | Nickel | Adapter Type | Plug to Plug |
| Adapter Series | BNC, HD to SMA |
