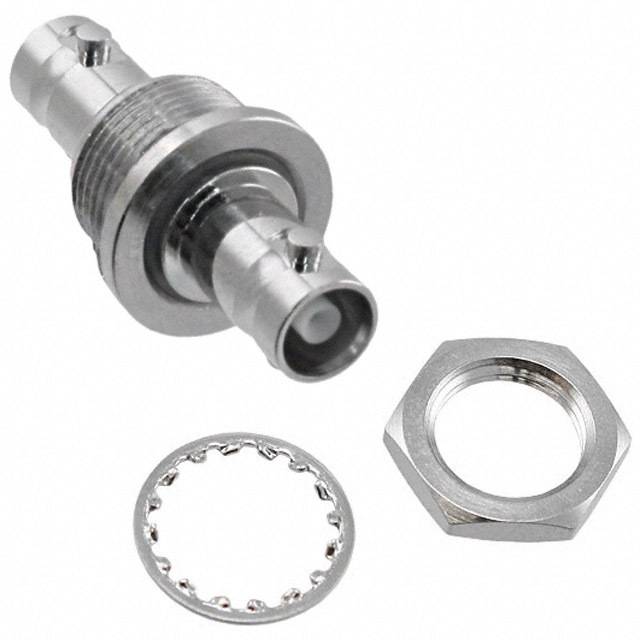

APH-HD-ISO-HD
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APH-HD-ISO-HD with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APH-HD-ISO-HD with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APH-HD-ISO-HD |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN ADAPT JACK-JACK HDBNC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $15.805 | $14.875 | $14.41 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $13.48 | $12.737 | $12.365 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | APH-HD-ISO-HD | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN ADAPT JACK-JACK HDBNC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2953 pcs | Data sheet | APH-HD-ISO-HD Drawing |
| Category | Connectors, Interconnects | Style | Straight |
| Series | - | Packaging | Bulk |
| Other Names | APHHDISOHD ARF1922 |
Operating Temperature | -65°C ~ 165°C |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | Impedance | 75 Ohm |
| Frequency - Max | 3GHz | Features | Isolated |
| Fastening Type | Bayonet Lock, Bayonet Lock | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | Adapter Coaxial Connector BNC HD Jack, Female Socket To BNC HD Jack, Female Socket 75 Ohm | Convert To (Adapter End) | BNC HD Jack, Female Socket |
| Convert From (Adapter End) | BNC HD Jack, Female Socket | Conversion Type | Same Series |
| Center Gender | Female to Female | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Body Material | Brass |
| Body Finish | Nickel | Adapter Type | Jack to Jack |
| Adapter Series | BNC, HD to BNC, HD |
