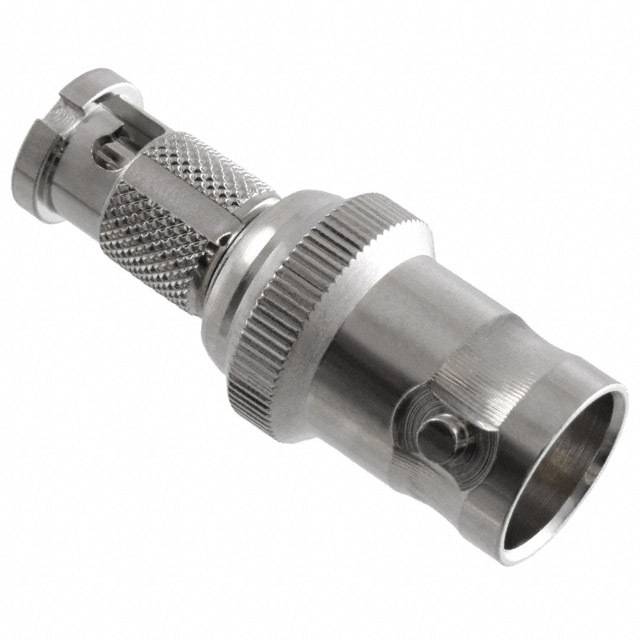

APH-BNCJ-HDBNCP
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APH-BNCJ-HDBNCP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APH-BNCJ-HDBNCP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APH-BNCJ-HDBNCP |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN ADAPT HDBNC PLUG - BNC JACK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $10.928 | $9.865 | $9.451 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $8.86 | $8.565 | $8.093 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | APH-BNCJ-HDBNCP | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN ADAPT HDBNC PLUG - BNC JACK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4372 pcs | Data sheet | APH-BNCJ-HDBNCP Drawing |
| Category | Connectors, Interconnects | Style | Straight |
| Series | - | Packaging | Bulk |
| Other Names | APHBNCJHDBNCP ARF1762 |
Operating Temperature | -65°C ~ 165°C |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 75 Ohm |
| Frequency - Max | 3GHz | Features | - |
| Fastening Type | Bayonet Lock, Bayonet Lock | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | Adapter Coaxial Connector BNC HD Plug, Male Pin To BNC Jack, Female Socket 75 Ohm | Convert To (Adapter End) | BNC Jack, Female Socket |
| Convert From (Adapter End) | BNC HD Plug, Male Pin | Conversion Type | Between Series |
| Center Gender | Female to Male | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Body Material | Brass |
| Body Finish | Nickel | Adapter Type | Plug to Jack |
| Adapter Series | BNC, HD to BNC |
