901-10395

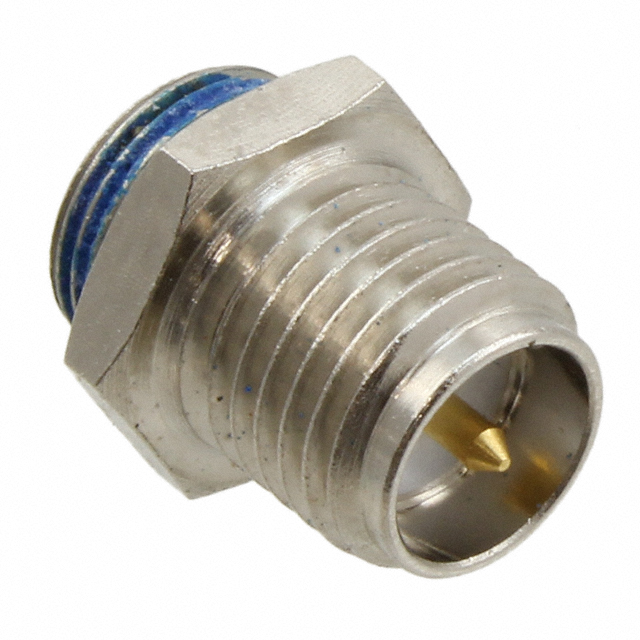

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 901-10395 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 901-10395 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 901-10395 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN ADAPT RP SMA JACK-AMC JACK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.71 | $2.596 | $2.371 | $2.258 | ||
| 100 pcs | 300 pcs | 500 pcs | 1000 pcs | ||
| $2.145 | $1.919 | $1.806 | $1.58 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 901-10395 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN ADAPT RP SMA JACK-AMC JACK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19074 pcs | Data sheet | 901-10395 Drawing |
| Category | Connectors, Interconnects | Style | Straight |
| Series | - | Packaging | Tray |
| Other Names | ARF2247 | Operating Temperature | -65°C ~ 165°C |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 100 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Frequency - Max | 6GHz | Features | - |
| Fastening Type | Snap-On, Threaded | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | Adapter Coaxial Connector RP-SMA Jack, Male Pin To Ultra Miniature Coaxial Jack, Male Pin 50 Ohm | Convert To (Adapter End) | Ultra Miniature Coaxial Jack, Male Pin |
| Convert From (Adapter End) | RP-SMA Jack, Male Pin | Conversion Type | Between Series |
| Center Gender | Male to Male | Center Contact Plating | Gold |
| Center Contact Material | Brass | Body Material | Brass |
| Body Finish | Nickel | Adapter Type | Jack to Jack |
| Adapter Series | RP-SMA to AMC |
