901-10387
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 901-10387 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 901-10387 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 901-10387 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN SMA JACK STR 50OHM EDGE MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $8.098 | $7.309 | $7.003 | $6.565 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $6.346 | $5.996 | $5.821 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 901-10387 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN SMA JACK STR 50OHM EDGE MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5640 pcs | Data sheet | 901-10387 Drawing |
| Category | Connectors, Interconnects | Shield Termination | Solder |
| Series | ARC | Packaging | Bulk |
| Other Names | 90110387 ARF2243 |
Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Board Edge, End Launch; Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |

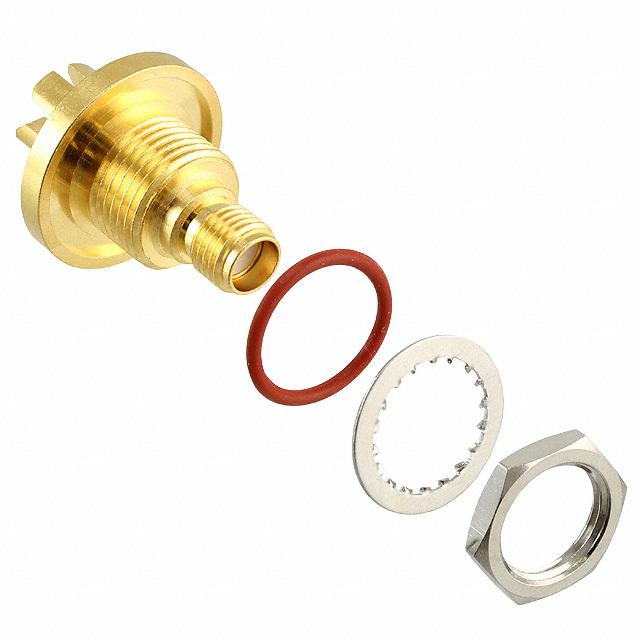

| Ingress Protection | IP67 - Dust Tight, Waterproof | Includes | 4 pcs - 1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut |
| Impedance | 50 Ohm | Housing Color | Gold |
| Frequency - Max | 3GHz | Features | - |
| Fastening Type | Threaded | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | SMA Connector Jack, Female Socket 50 Ohm Board Edge, End Launch; Panel Mount Solder | Contact Termination | Solder |
| Connector Type | Jack, Female Socket | Connector Style | SMA |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Cable Group | - | Body Material | Brass |
| Body Finish | Gold |
