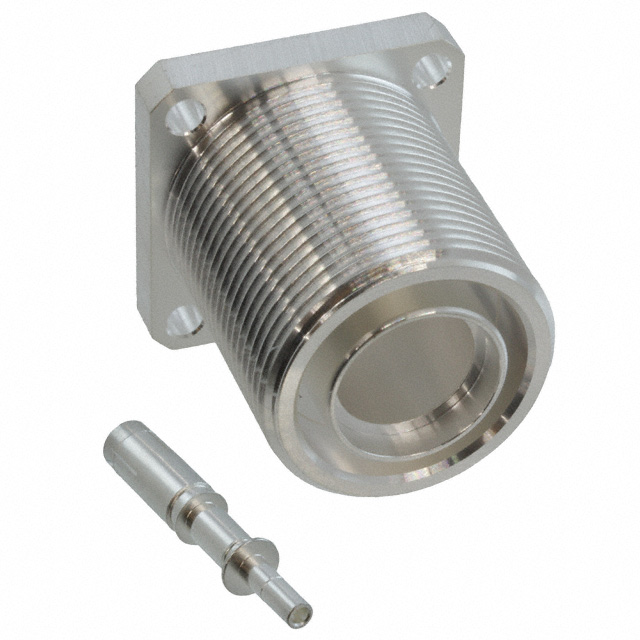

272101
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 272101 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 272101 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 272101 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN 7/16 DIN JACK STR 50 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $20.483 | $19.279 | $18.676 | $17.471 | $16.507 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 272101 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN 7/16 DIN JACK STR 50 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2022 pcs | Data sheet | 272101 Drawing |
| Category | Connectors, Interconnects | Shield Termination | Screw |
| Series | - | Packaging | Bulk |
| Other Names | ACX1980 | Operating Temperature | -40°C ~ 150°C |
| Number of Ports | 1 | Mounting Type | Panel Mount |
| Mounting Feature | Flange | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | - |
| Impedance | 50 Ohm | Housing Color | Silver |
| Frequency - Max | 7.5GHz | Features | Field Replaceable, For Hermetically Sealed Pin |
| Fastening Type | Threaded | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | 7/16 DIN Connector Jack, Female Socket 50 Ohm Panel Mount Compression | Contact Termination | Compression |
| Connector Type | Jack, Female Socket | Connector Style | 7/16 DIN |
| Center Contact Plating | Silver | Center Contact Material | Beryllium Copper |
| Cable Group | RG-401 (.250" Semi Rigid) | Body Material | Brass |
| Body Finish | White Bronze |
