272100-11

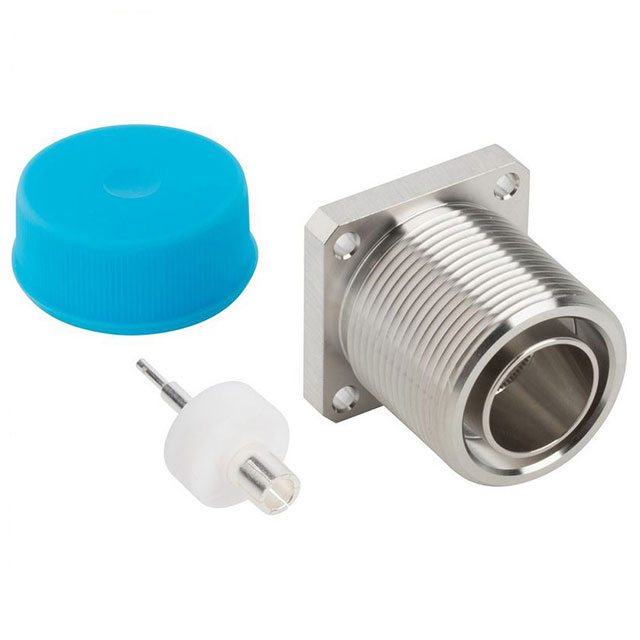

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 272100-11 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 272100-11 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 272100-11 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN 7/16 DIN JACK STR 50 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | ||||
|---|---|---|---|---|---|
| $33.213 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 272100-11 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN 7/16 DIN JACK STR 50 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1096 pcs | Data sheet | 272100-11 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 1500V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Operating Temperature | -55°C ~ 155°C |
| Number of Ports | 1 | Mounting Type | Panel Mount |
| Mounting Feature | Flange | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | 2 pcs - 1 Connector, 1 Contact |
| Impedance | 50 Ohm | Housing Color | Silver |
| Frequency - Max | 6GHz | Features | Low PIM |
| Fastening Type | Threaded | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | 7/16 DIN Connector Jack, Female Socket 50 Ohm Panel Mount Solder | Contact Termination | Solder |
| Connector Type | Jack, Female Socket | Connector Style | 7/16 DIN |
| Center Contact Plating | Silver | Center Contact Material | Phosphor Bronze |
| Cable Group | RG-402 (.141" Semi Rigid) | Body Material | Brass |
| Body Finish | White Bronze |
