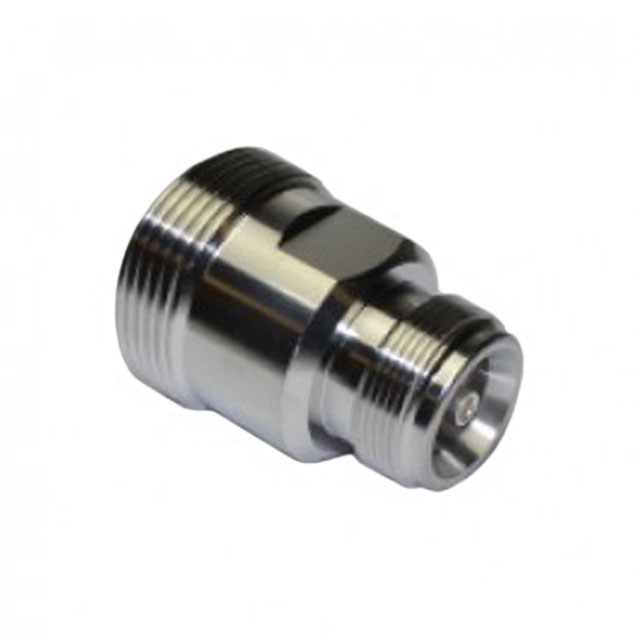

242276
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 242276 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 242276 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 242276 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN ADAPT 7/16 JCK-4.1/9.5 JCK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $21.238 | $19.988 | $19.364 | $18.114 | $17.115 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 242276 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN ADAPT 7/16 JCK-4.1/9.5 JCK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2078 pcs | Data sheet | 242276 Drawing |
| Category | Connectors, Interconnects | Style | Straight |
| Series | - | Packaging | Bulk |
| Other Names | ACX2353 | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.1dB | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Frequency - Max | 3GHz | Features | Low PIM |
| Fastening Type | Threaded, Threaded | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | Adapter Coaxial Connector 7/16 Jack, Female Socket To 4.1/9.5 Jack, Female Socket 50 Ohm | Convert To (Adapter End) | 4.1/9.5 Jack, Female Socket |
| Convert From (Adapter End) | 7/16 Jack, Female Socket | Conversion Type | Between Series |
| Center Gender | Female to Female | Center Contact Plating | Silver |
| Center Contact Material | Copper Alloy | Body Material | Brass |
| Body Finish | Copper Alloy | Adapter Type | Jack to Jack |
| Adapter Series | 7/16 DIN to 4.1/9.5 |
