242265

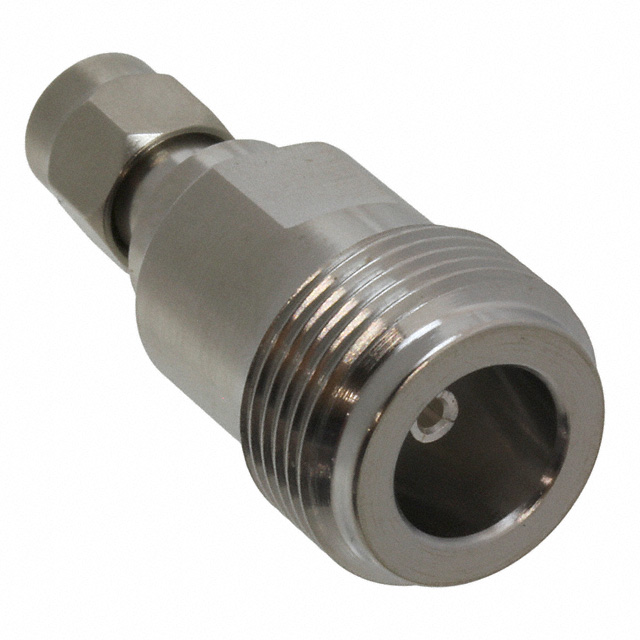

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 242265 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 242265 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 242265 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN ADAPT N JACK TO SMA PLUG |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $16.735 | $15.751 | $15.259 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $14.274 | $13.487 | $13.093 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 242265 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN ADAPT N JACK TO SMA PLUG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2271 pcs | Data sheet | 242265 Drawing |
| Category | Connectors, Interconnects | Style | Straight |
| Series | - | Packaging | Bulk |
| Other Names | ACX2133 | Operating Temperature | -55°C ~ 155°C |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.1dB | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Includes | - | Impedance | 50 Ohm |
| Frequency - Max | 6GHz | Features | Low PIM |
| Fastening Type | Threaded, Threaded | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | Adapter Coaxial Connector SMA Plug, Male Pin To N Jack, Female Socket 50 Ohm | Convert To (Adapter End) | N Jack, Female Socket |
| Convert From (Adapter End) | SMA Plug, Male Pin | Conversion Type | Between Series |
| Center Gender | Female to Male | Center Contact Plating | Silver |
| Center Contact Material | Brass | Body Material | Brass |
| Body Finish | White Bronze | Adapter Type | Plug to Jack |
| Adapter Series | SMA to N |
