242204
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 242204 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 242204 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 242204 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |

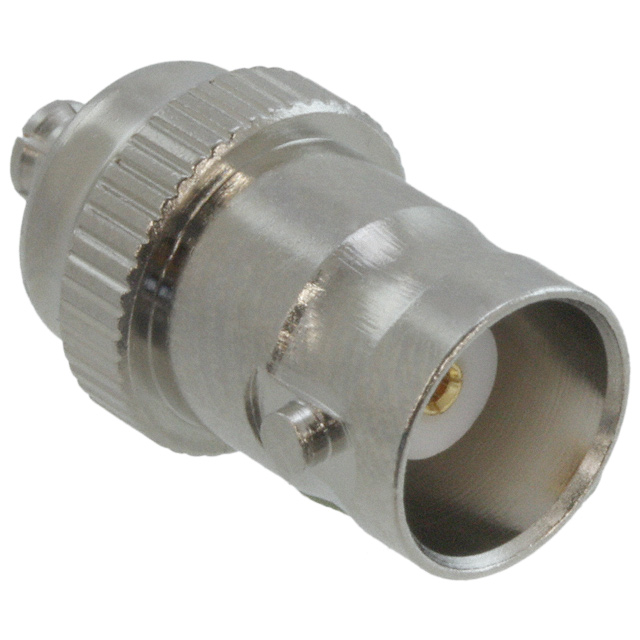

| Description | CONN ADAPT BNC JACK TO MCX PLUG |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.78 | $5.255 | $5.124 | $4.729 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $4.467 | $4.073 | $3.81 | $3.494 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 242204 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN ADAPT BNC JACK TO MCX PLUG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9407 pcs | Data sheet | 242204 Drawing |
| Category | Connectors, Interconnects | Style | Straight |
| Series | - | Packaging | Bulk |
| Other Names | 242204-ND ACX2049 |
Operating Temperature | -65°C ~ 165°C |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Frequency - Max | 4GHz | Features | - |
| Fastening Type | Bayonet Lock, Snap-On | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | Adapter Coaxial Connector BNC Jack, Female Socket To MCX Plug, Male Pin 50 Ohm | Convert To (Adapter End) | MCX Plug, Male Pin |
| Convert From (Adapter End) | BNC Jack, Female Socket | Conversion Type | Between Series |
| Center Gender | Female to Male | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Body Material | Beryllium Copper |
| Body Finish | Nickel | Adapter Type | Plug to Jack |
| Adapter Series | BNC to MCX |
