242178

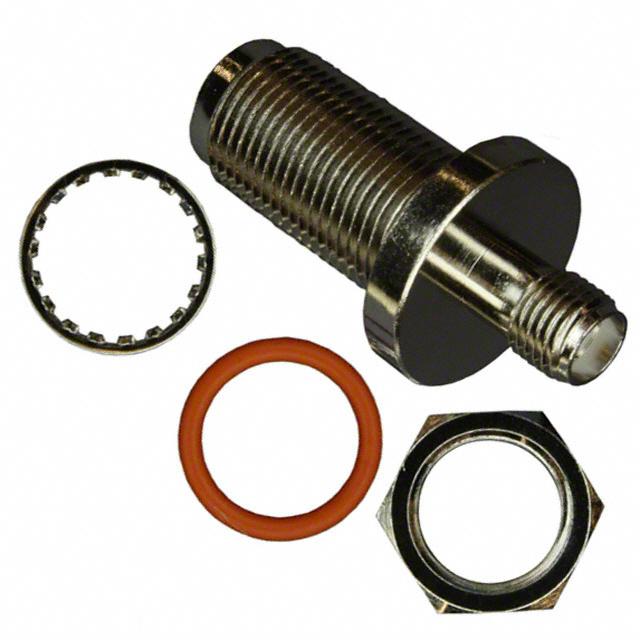

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 242178 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 242178 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 242178 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN ADAPT SMA JACK TO TNC JACK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $6.201 | $5.759 | $5.168 | $5.02 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $4.43 | $4.134 | $4.046 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 242178 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN ADAPT SMA JACK TO TNC JACK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8163 pcs | Data sheet | 242178 Drawing |
| Category | Connectors, Interconnects | Style | Straight |
| Series | - | Packaging | Bulk |
| Other Names | ACX1333 | Operating Temperature | -65°C ~ 165°C |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | 4 pcs - 1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut | Impedance | 50 Ohm |
| Frequency - Max | 11GHz | Features | - |
| Fastening Type | Threaded, Threaded | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | Adapter Coaxial Connector SMA Jack, Female Socket To TNC Jack, Female Socket 50 Ohm | Convert To (Adapter End) | TNC Jack, Female Socket |
| Convert From (Adapter End) | SMA Jack, Female Socket | Conversion Type | Between Series |
| Center Gender | Female to Female | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Body Material | Brass |
| Body Finish | Nickel | Adapter Type | Jack to Jack |
| Adapter Series | SMA to TNC |
