242178-10

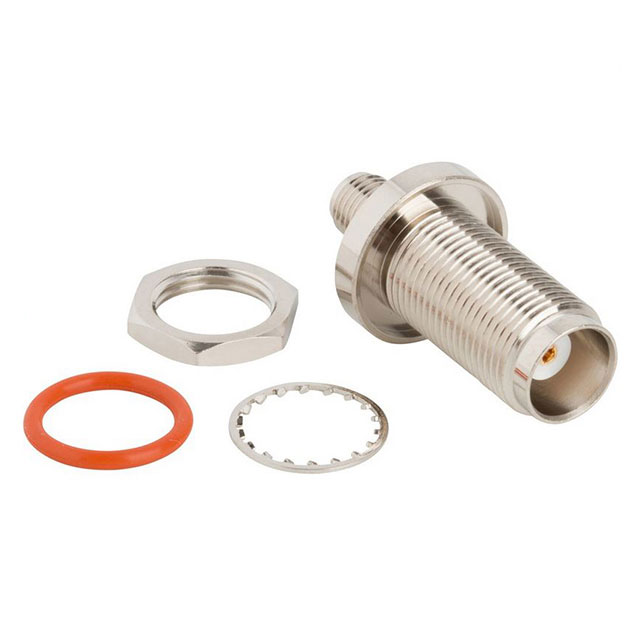

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 242178-10 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 242178-10 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 242178-10 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN ADAPT SMA JACK TO TNC JACK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 25 pcs | ||||
|---|---|---|---|---|---|
| $13.921 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 242178-10 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN ADAPT SMA JACK TO TNC JACK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2570 pcs | Data sheet | 242178-10 Drawing |
| Category | Connectors, Interconnects | Style | Straight |
| Series | - | Packaging | Bulk |
| Operating Temperature | -65°C ~ 165°C | Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | IP68 - Dust Tight, Waterproof | Includes | 4 pcs - 1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut |
| Impedance | 50 Ohm | Frequency - Max | 11GHz |
| Features | - | Fastening Type | Threaded, Threaded |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | Adapter Coaxial Connector SMA Jack, Female Socket To TNC Jack, Female Socket 50 Ohm |
| Convert To (Adapter End) | TNC Jack, Female Socket | Convert From (Adapter End) | SMA Jack, Female Socket |
| Conversion Type | Between Series | Center Gender | Female to Female |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Body Material | Brass | Body Finish | Nickel |
| Adapter Type | Jack to Jack | Adapter Series | SMA to TNC |
