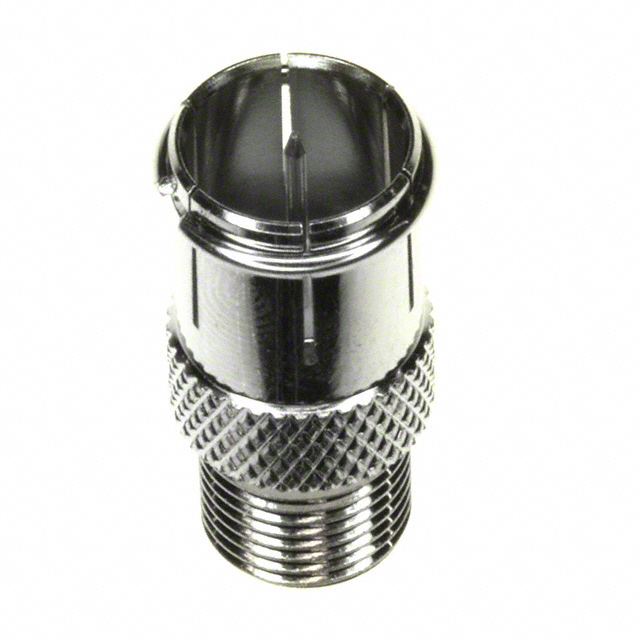

222157
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 222157 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 222157 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 222157 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN ADAPT PLUG TO JACK F 75 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.842 | $0.764 | $0.717 | $0.685 | $0.654 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.592 | $0.545 | $0.467 | $0.436 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 222157 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN ADAPT PLUG TO JACK F 75 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 85562 pcs | Data sheet | F Type Connector Catalog222157 Drawing |
| Category | Connectors, Interconnects | Style | Straight |
| Series | - | Packaging | Bulk |
| Other Names | ACX1471 | Operating Temperature | -55°C ~ 85°C |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 75 Ohm |
| Frequency - Max | 2GHz | Features | - |
| Fastening Type | Snap-On, Threaded | Dielectric Material | Polyoxymethylene (POM) Acetal, Polypropylene (PP) |
| Detailed Description | Adapter Coaxial Connector F Plug, Male Pin To F Jack, Female Socket 75 Ohm | Convert To (Adapter End) | F Jack, Female Socket |
| Convert From (Adapter End) | F Plug, Male Pin | Conversion Type | Same Series |
| Center Gender | Female to Male | Center Contact Plating | Tin |
| Center Contact Material | Brass | Body Material | Brass |
| Body Finish | Nickel | Adapter Type | Plug to Jack |
| Adapter Series | F to F |
