222146

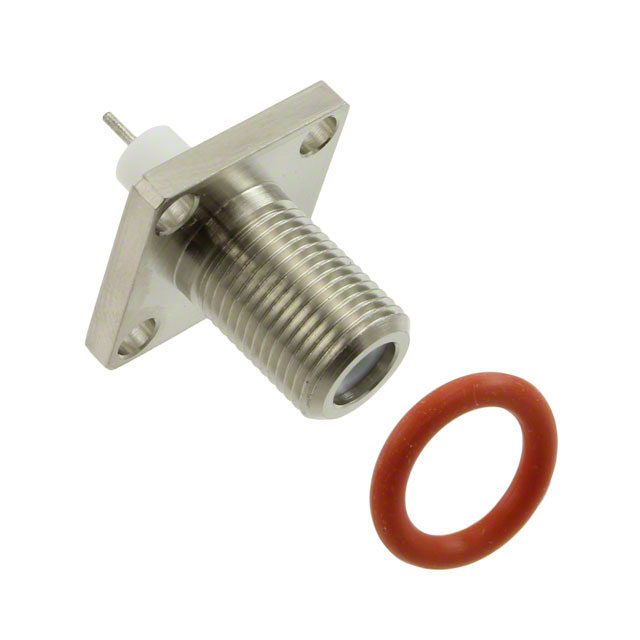

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 222146 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 222146 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 222146 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN F JACK STR 75 OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.61 | $2.502 | $2.284 | $2.176 | $2.067 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.849 | $1.74 | $1.523 | $1.447 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 222146 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN F JACK STR 75 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23590 pcs | Data sheet | F Type Connector Catalog222146 Drawing |
| Category | Connectors, Interconnects | Shield Termination | Solder |
| Series | - | Packaging | Bulk |
| Other Names | ACX1545 | Operating Temperature | - |
| Number of Ports | 1 | Mounting Type | Panel Mount |
| Mounting Feature | Flange | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | 2 pcs - 1 Connector, 1 Gasket |
| Impedance | 75 Ohm | Housing Color | Silver |
| Frequency - Max | 2GHz | Features | Extended Insulation |
| Fastening Type | Threaded | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | F Type Connector Jack, Female Socket 75 Ohm Panel Mount Solder | Contact Termination | Solder |
| Connector Type | Jack, Female Socket | Connector Style | F Type |
| Center Contact Plating | Tin | Center Contact Material | Brass |
| Cable Group | - | Body Material | Brass |
| Body Finish | Nickel |
