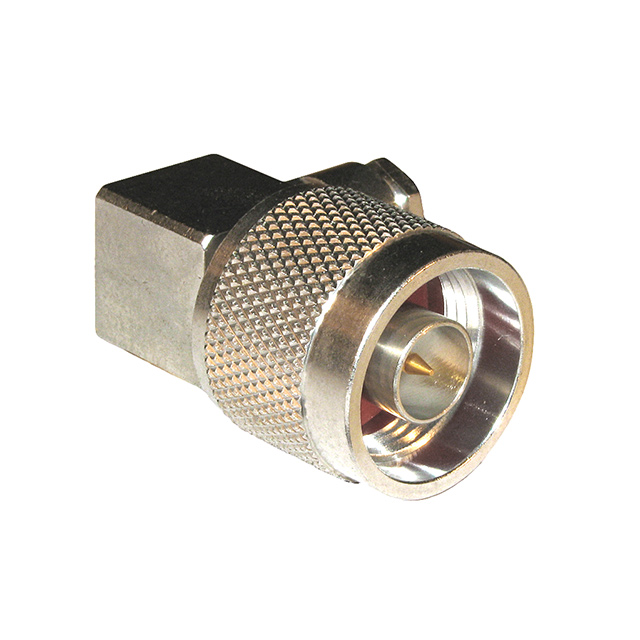

172316
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 172316 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 172316 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 172316 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN N PLUG R/A 50OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $7.323 | $6.798 | $6.101 | $5.927 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $5.23 | $4.881 | $4.776 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 172316 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN N PLUG R/A 50OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7462 pcs | Data sheet | 172316 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 1500V |
| Shield Termination | Clamp | Series | - |
| Packaging | Bulk | Other Names | 172316-ND ARF3003 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line), Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.15dB | Ingress Protection | Weatherproof |
| Includes | 7 pcs - 1 Connector, 1 Clamp, 1 End Cap, 1 Gasket, 1 Insulator, 1 Nut, 1 Washer | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 11GHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | N Type Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line), Right Angle Solder |
| Contact Termination | Solder | Connector Type | Plug, Male Pin |
| Connector Style | N Type | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907 |
| Body Material | Brass | Body Finish | White Bronze |
