172171
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 172171 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 172171 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 172171 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN N PLUG STR 50 OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.355 | $3.209 | $2.917 | $2.771 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.698 | $2.406 | $2.261 | $1.998 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 172171 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN N PLUG STR 50 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19115 pcs | Data sheet | 172171 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 1500V |
| Shield Termination | Crimp | Series | - |
| Packaging | Bulk | Other Names | ACX1124 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.15dB | Ingress Protection | - |

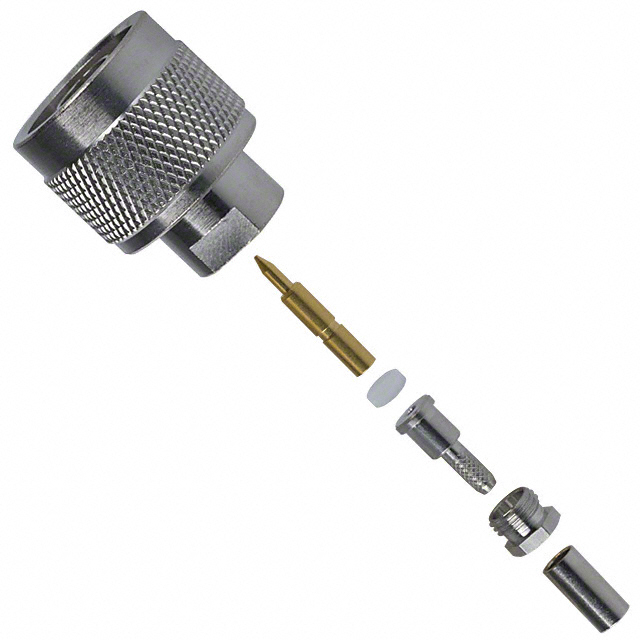

| Includes | 6 pcs - 1 Connector, 1 Barrel, 1 Contact, 1 Ferrule, 1 Hex Nut, 1 Insulator | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 11GHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | N Type Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line) Solder |
| Contact Termination | Solder | Connector Type | Plug, Male Pin |
| Connector Style | N Type | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | RG-179, 188, 316 Double Braid, M17/152-RD316 |
| Body Material | Brass | Body Finish | White Bronze |
