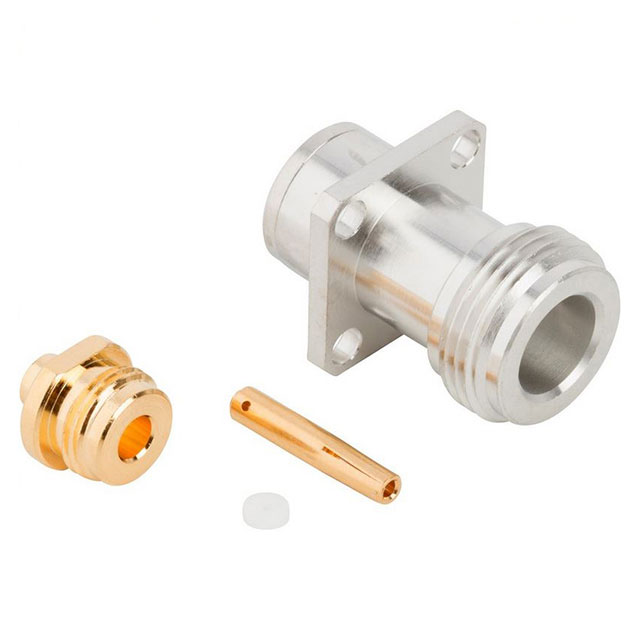

172170-10
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 172170-10 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 172170-10 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 172170-10 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN N JACK STR 50OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $4.649 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 172170-10 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN N JACK STR 50OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6482 pcs | Data sheet | 172170-10 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 1500V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Panel Mount |
| Mounting Feature | Flange | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 0.15dB |
| Ingress Protection | - | Includes | 4 pcs - 1 Connector, 1 Contact, 1 Insulator, 1 Nut |
| Impedance | 50 Ohm | Housing Color | Silver |
| Frequency - Max | 11GHz | Features | - |
| Fastening Type | Threaded | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | N Type Connector Jack, Female Socket 50 Ohm Panel Mount Solder | Contact Termination | Solder |
| Connector Type | Jack, Female Socket | Connector Style | N Type |
| Center Contact Plating | Gold | Center Contact Material | Phosphor Bronze |
| Cable Group | RG-402 (.141" Semi Rigid) | Body Material | Brass |
| Body Finish | White Bronze |
