132289
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 132289 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 132289 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 132289 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN SMA RCPT STR 50OHM EDGE MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.751 | $2.638 | $2.408 | $2.294 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.179 | $1.949 | $1.835 | $1.605 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 132289 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN SMA RCPT STR 50OHM EDGE MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22932 pcs | Data sheet | 132289 Drawing |
| Category | Connectors, Interconnects | Shield Termination | Solder |
| Series | - | Packaging | Bulk |
| Other Names | ACX1426 | Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Board Edge, End Launch; Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |

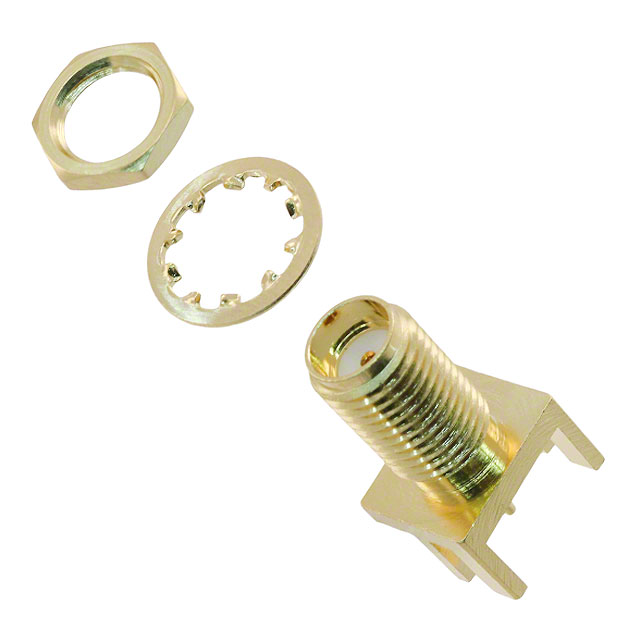

| Ingress Protection | - | Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut |
| Impedance | 50 Ohm | Housing Color | Gold |
| Frequency - Max | 18GHz | Features | - |
| Fastening Type | Threaded | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | SMA Connector Receptacle, Female Socket 50 Ohm Board Edge, End Launch; Panel Mount Solder | Contact Termination | Solder |
| Connector Type | Receptacle, Female Socket | Connector Style | SMA |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Cable Group | - | Body Material | Brass |
| Body Finish | Gold |
