132284
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 132284 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 132284 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 132284 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN SMA JACK STR 50 OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.587 | $3.432 | $3.12 | $2.964 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.886 | $2.574 | $2.418 | $2.137 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 132284 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN SMA JACK STR 50 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17876 pcs | Data sheet | 132284 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 375V |
| Shield Termination | Crimp | Series | - |
| Packaging | Bulk | Other Names | ACX1421 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |

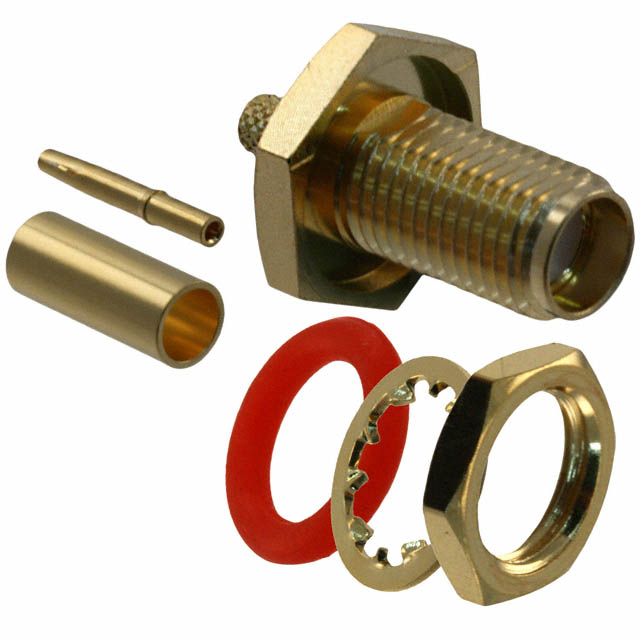

| Includes | 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 12.4GHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | SMA Connector Jack, Female Socket 50 Ohm Panel Mount Solder |
| Contact Termination | Solder | Connector Type | Jack, Female Socket |
| Connector Style | SMA | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | RG-174, 188, 188A, 316, LMR-100, M17/119-RG174 |
| Body Material | Brass | Body Finish | Gold |
